Engine Compartment

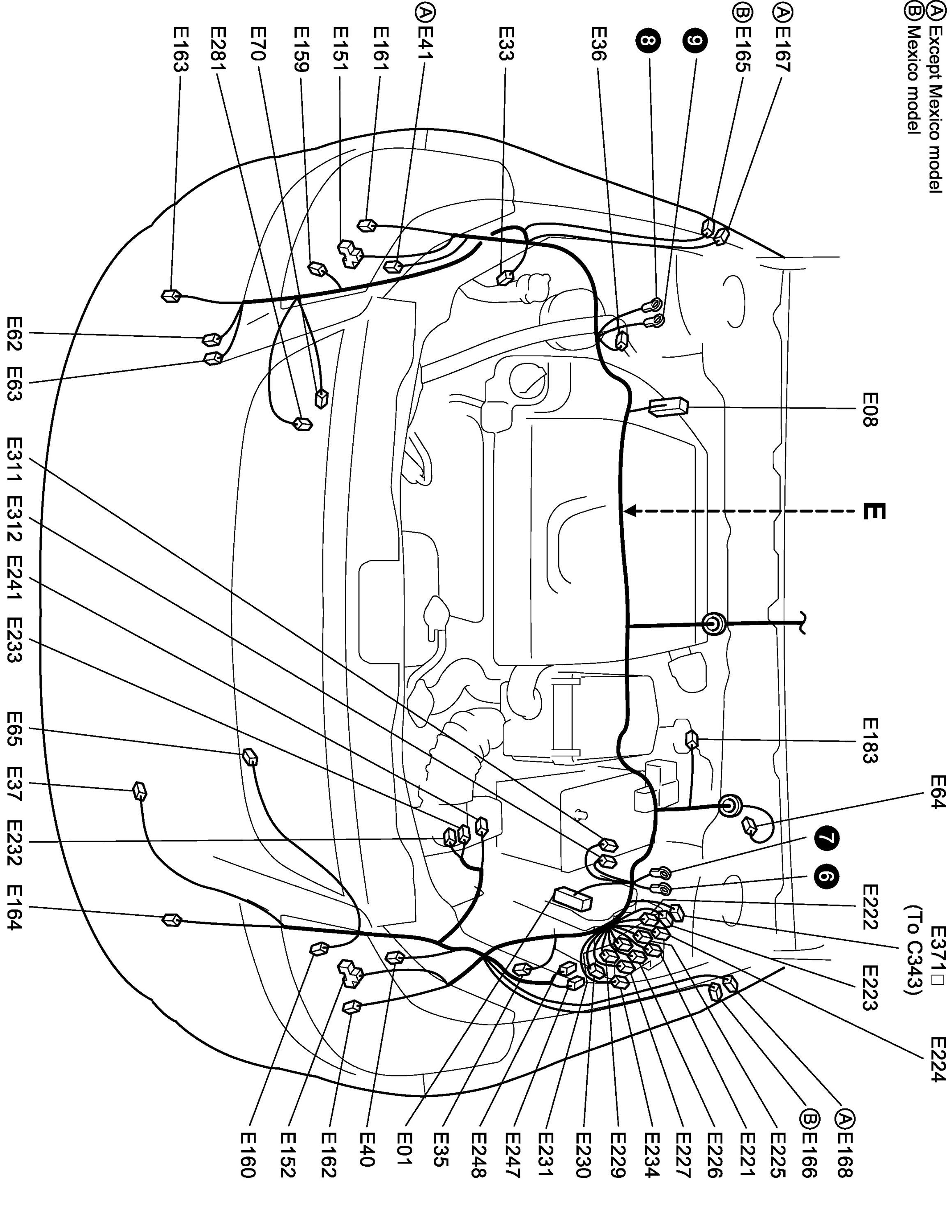

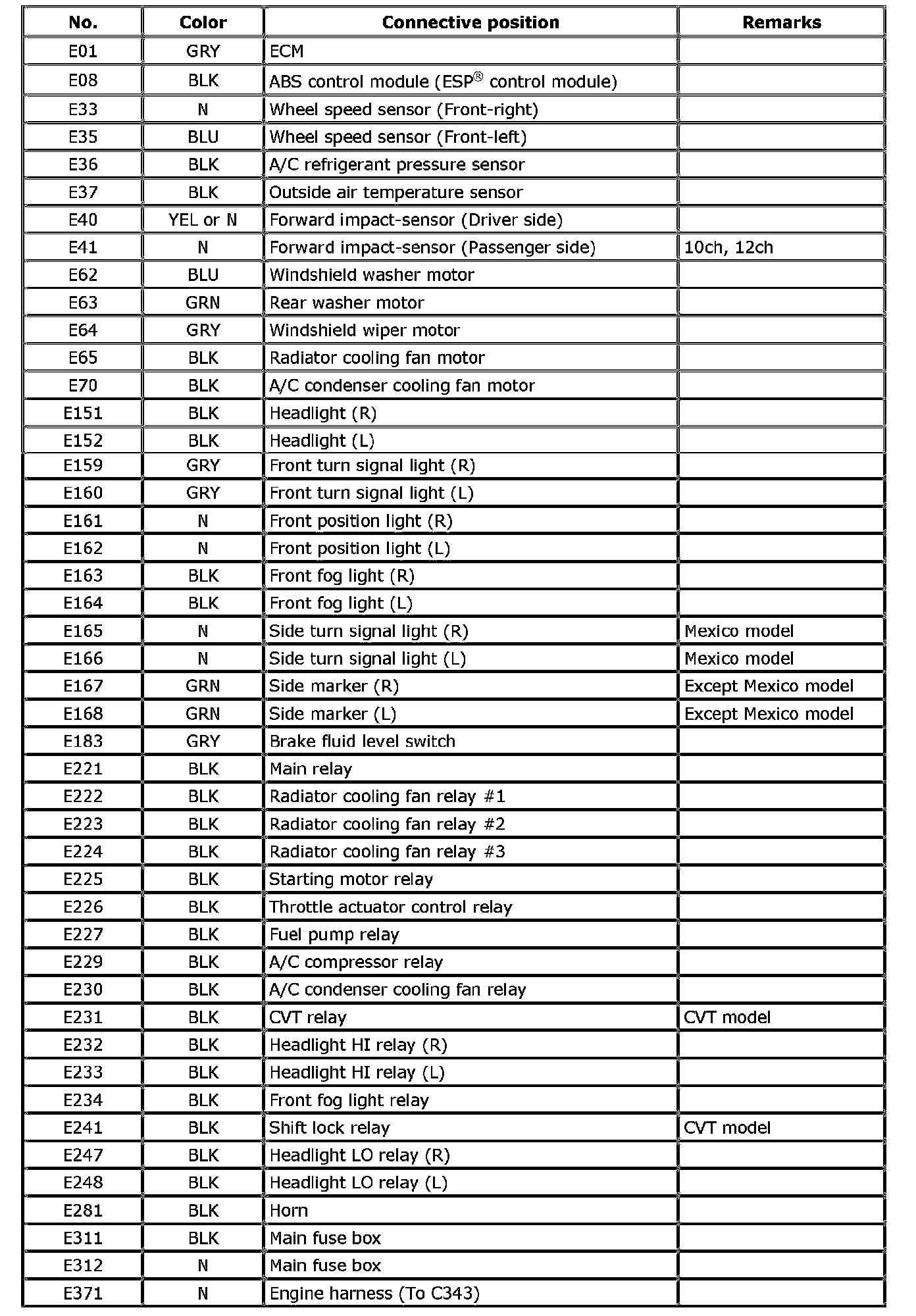

Engine CompartmentE: Main Harness
E: Main Harness
Door, Roof
J: Front and Rear Door Wire and Rear Door Wire / K: Roof Wire, Roof Audio Antenna Wire (Hatchback)
J: Door Harness (Driver Side)
J: Door Harness (Passenger Side)
E: Main Harness
E: Main Harness
Door, Roof
J: Front and Rear Door Wire and Rear Door Wire / K: Roof Wire, Roof Audio Antenna Wire (Hatchback)
J: Door Harness (Driver Side)
J: Door Harness (Passenger Side)
