Trunk Lid Switch Inspection (Sedan)

Trunk Lid Switch Inspection (Sedan)

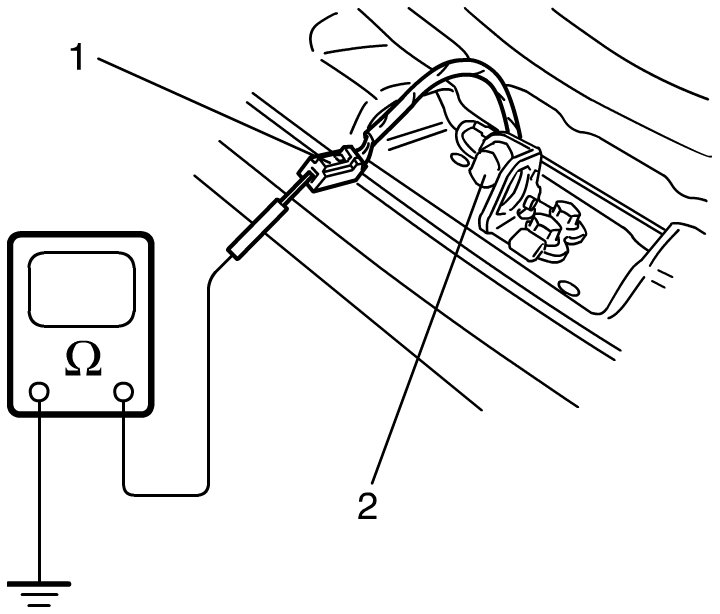

Check for continuity between trunk lid connector terminal (1) and body ground.

If check result is not as specified, replace switch.

Trunk lid switch specification
Trunk lid switch (2) is pushed: No continuity
Trunk lid switch (2) is free: Continuity
