Door Lock Cylinder Switch: Testing and Inspection

Door Key Cylinder Switch Inspection

1) Remove front door trim referring to Step 1) to 3) of Front Door Glass Removal and Installation Front Door Glass Removal and Installation

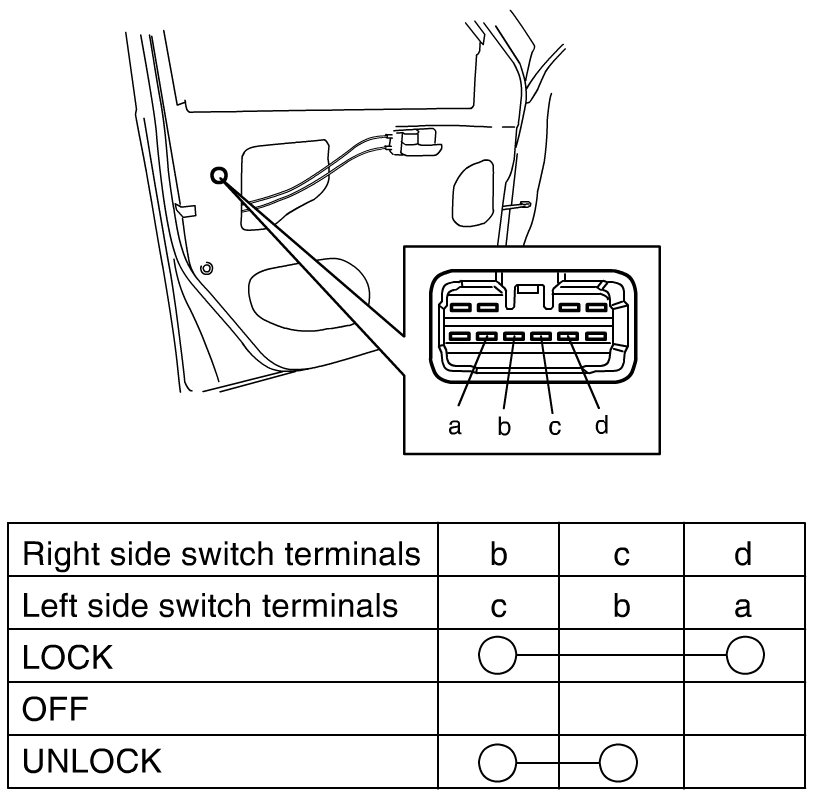

2) Check for continuity between terminals at each switch position. If check result is not as specified, replace door lock assembly.
