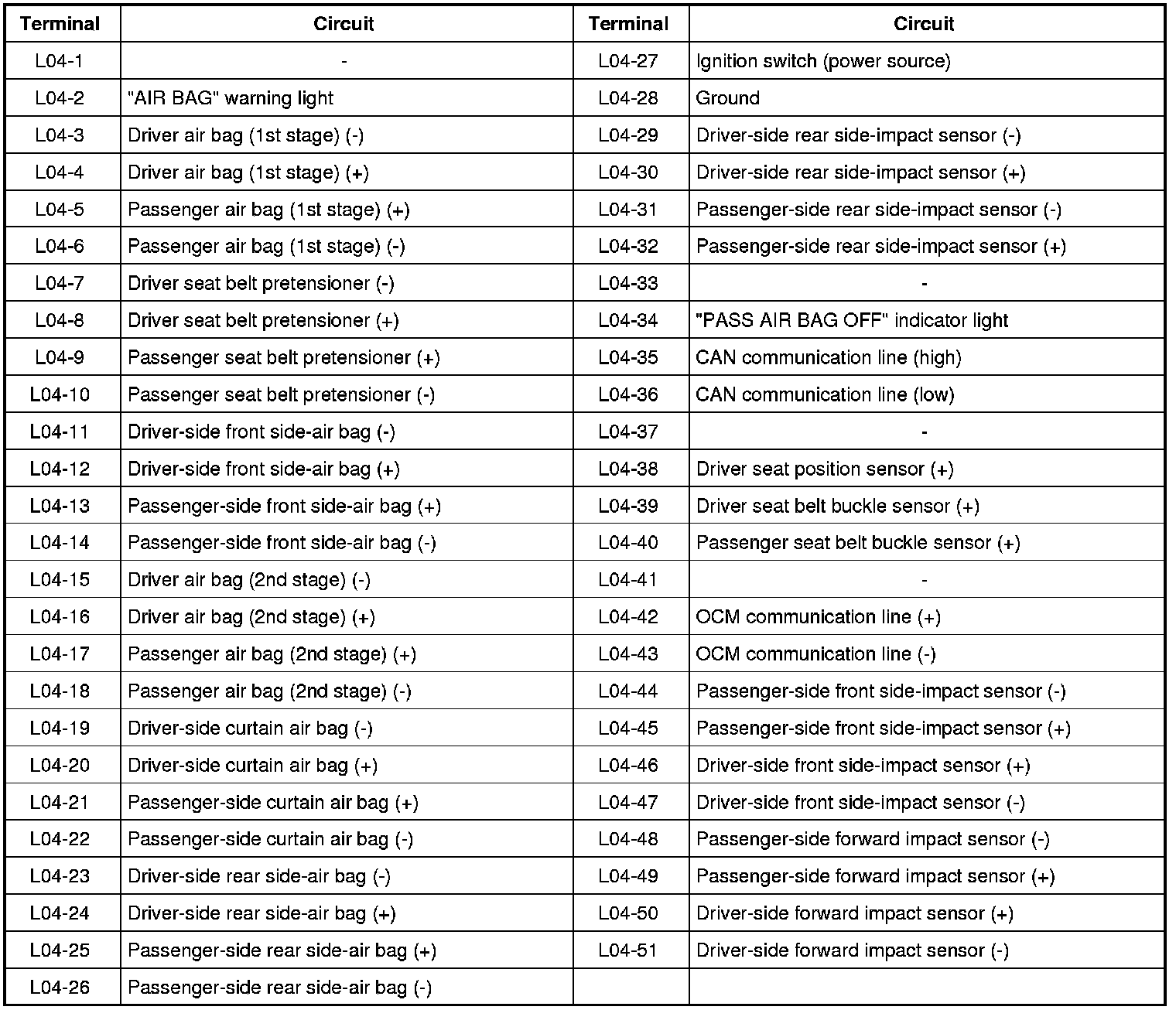

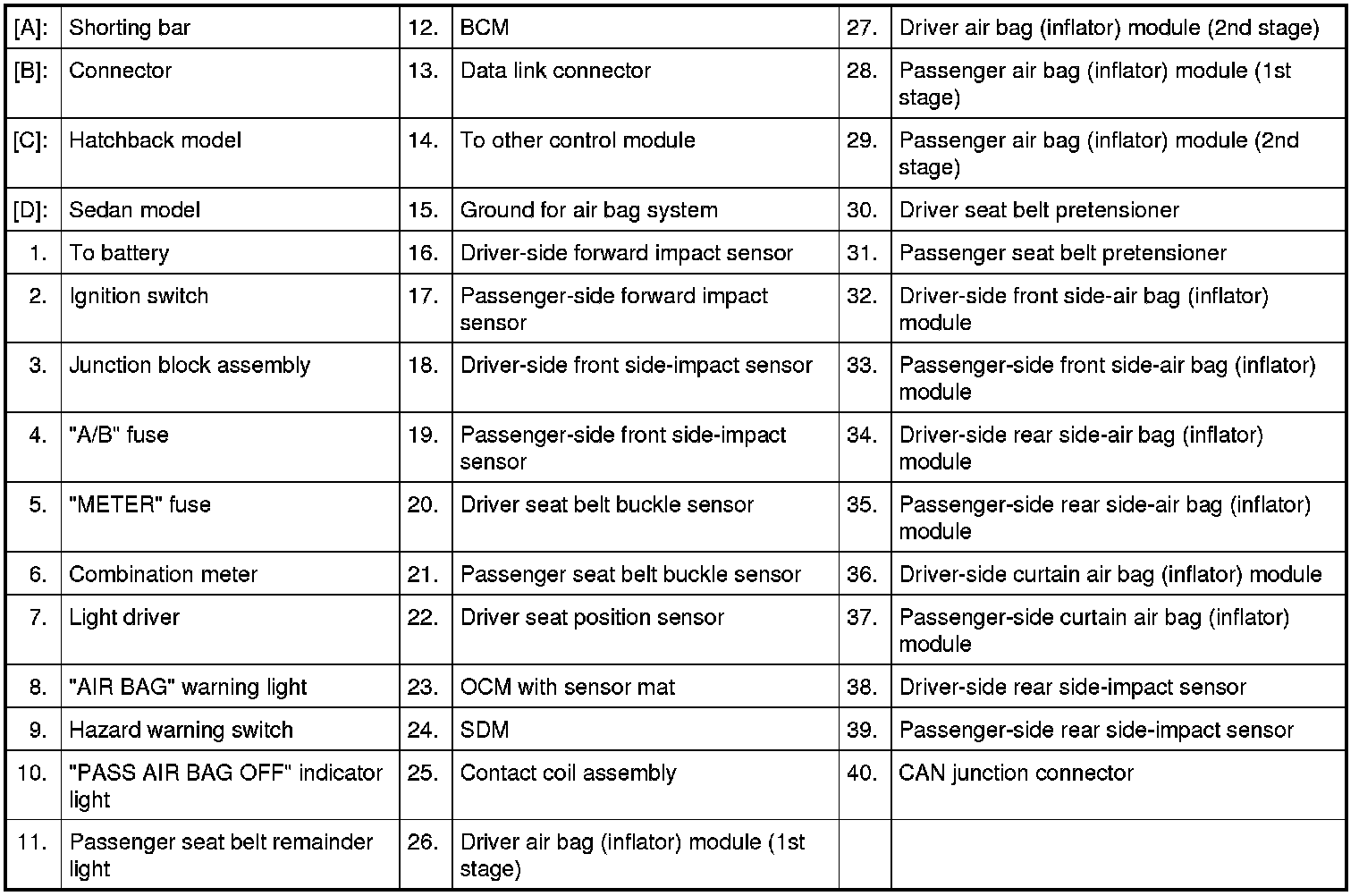

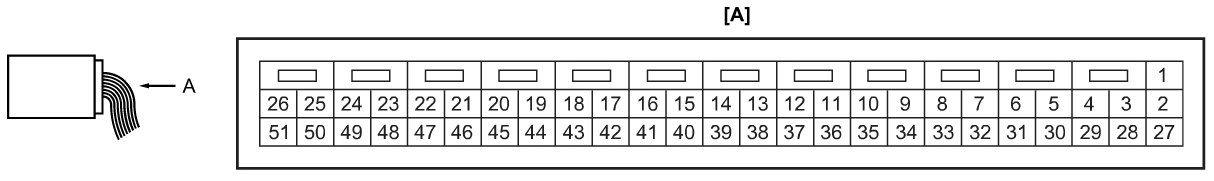

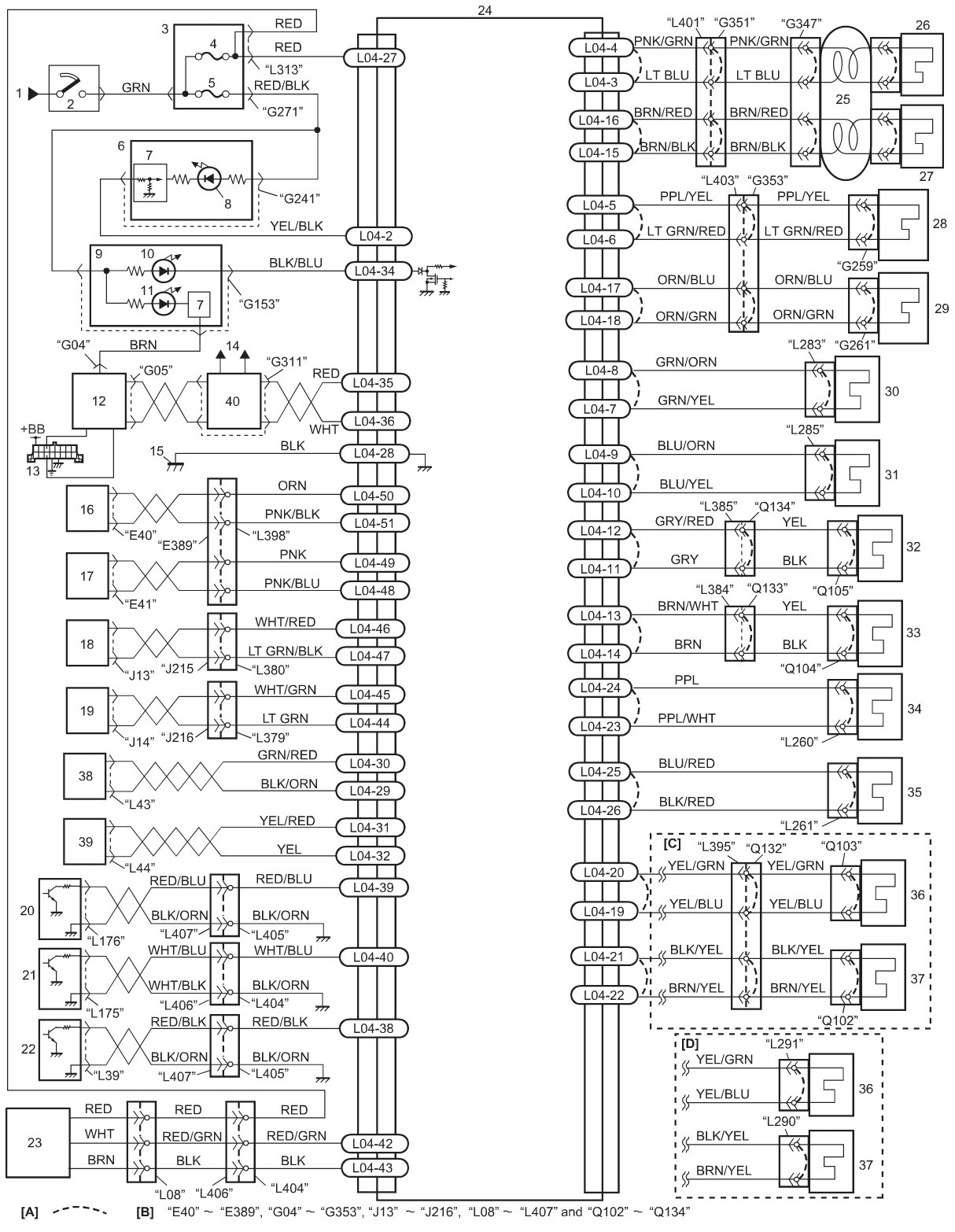

Home >> Suzuki >> 2012 >> SX4 4WD L4-2.0L >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Diagrams >> Electrical Diagrams >> Air Bag System Wiring Circuit Diagram >> Advanced Air Bag
