Headlight Switch (in Lighting Switch) Removal and Installation

Headlight Switch (in Lighting Switch) Removal and Installation

Removal

1) Disconnect negative (-) cable at battery.

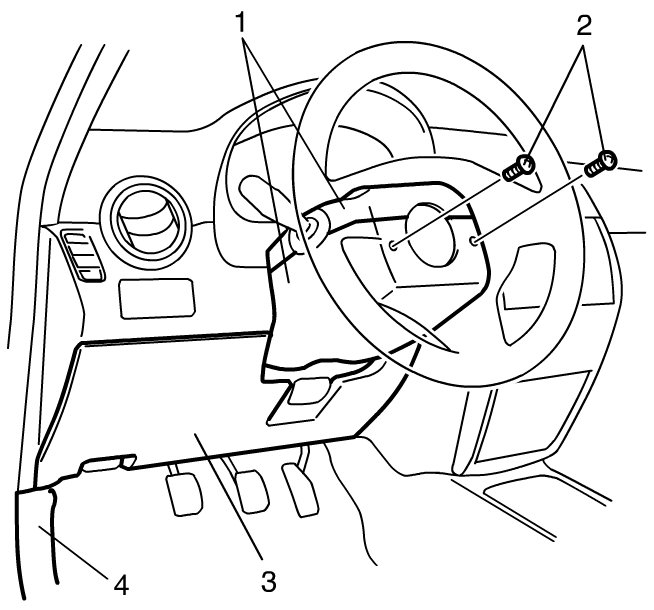

2) Remove dash side trim (4) and steering column hole cover (3).
3) Remove steering column covers (1).

Turn steering wheel to access steering column cover screws (2).

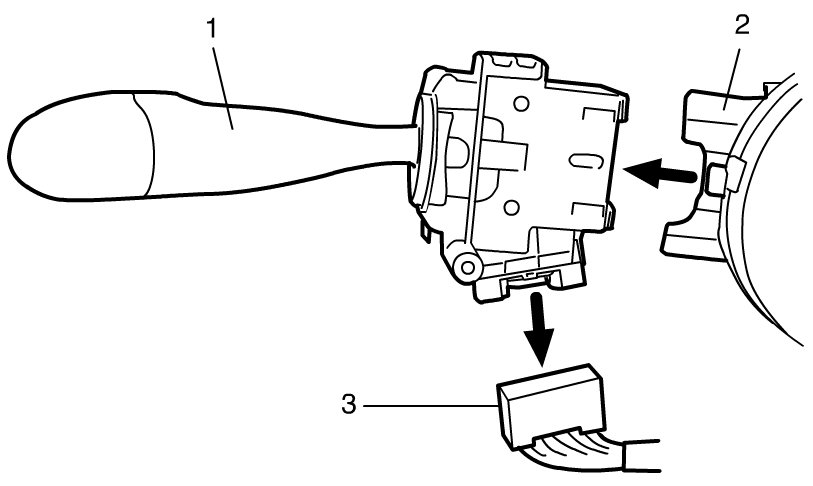

4) Remove lighting switch (1) from combination switch assembly (2) and disconnect its coupler (3).






Installation

Headlight Switch (in Lighting Switch) Inspection

Reverse removal procedure for installation.
