Hazard Warning Switch Removal and Installation




Hazard Warning Switch Removal and Installation

Removal

1) Disconnect negative (-) cable at battery.
2) Remove center ventilation louver with garnish (1) referring to Center Ventilation Louver Removal and Installation Center Ventilation Louver Removal and Installation.

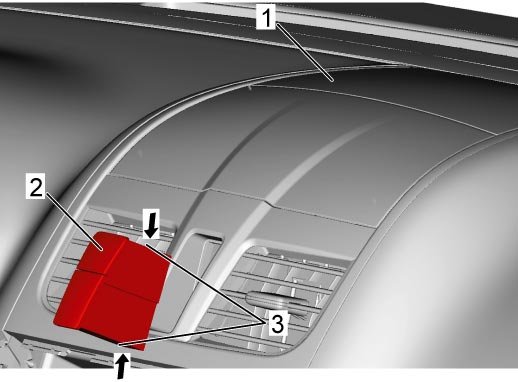

3) Disconnect coupler, and then remove hazard warning switch (2) from center ventilation louver with garnish (1) while releasing the locks (3).






Installation

Hazard Warning Switch Inspection

Reverse removal procedure for installation.
