Back Up Lamp Switch Inspection




Back Up Lamp Switch Inspection

Back Up Lamp Switch Removal and Installation

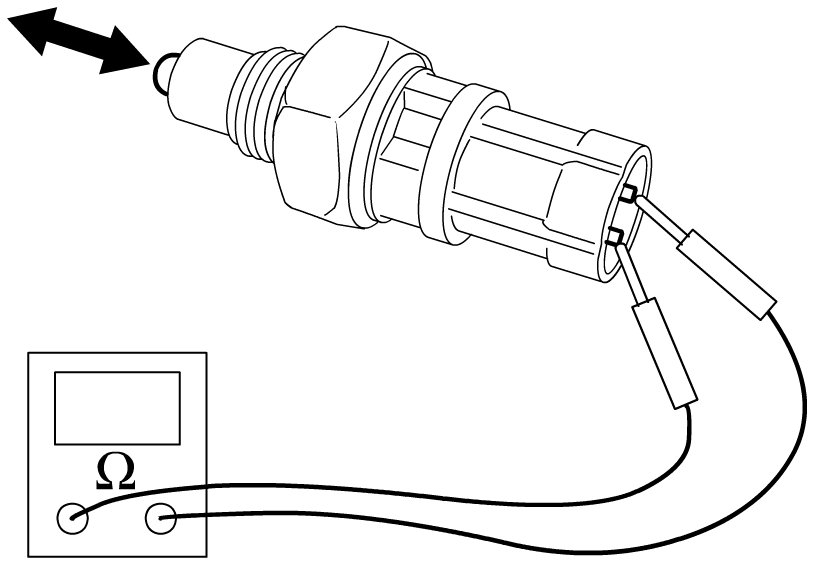

Check backup lamp switch for function using ohmmeter.

Back up lamp switch specification
Switch ON (Push): Continuity
Switch OFF (Release): No continuity
