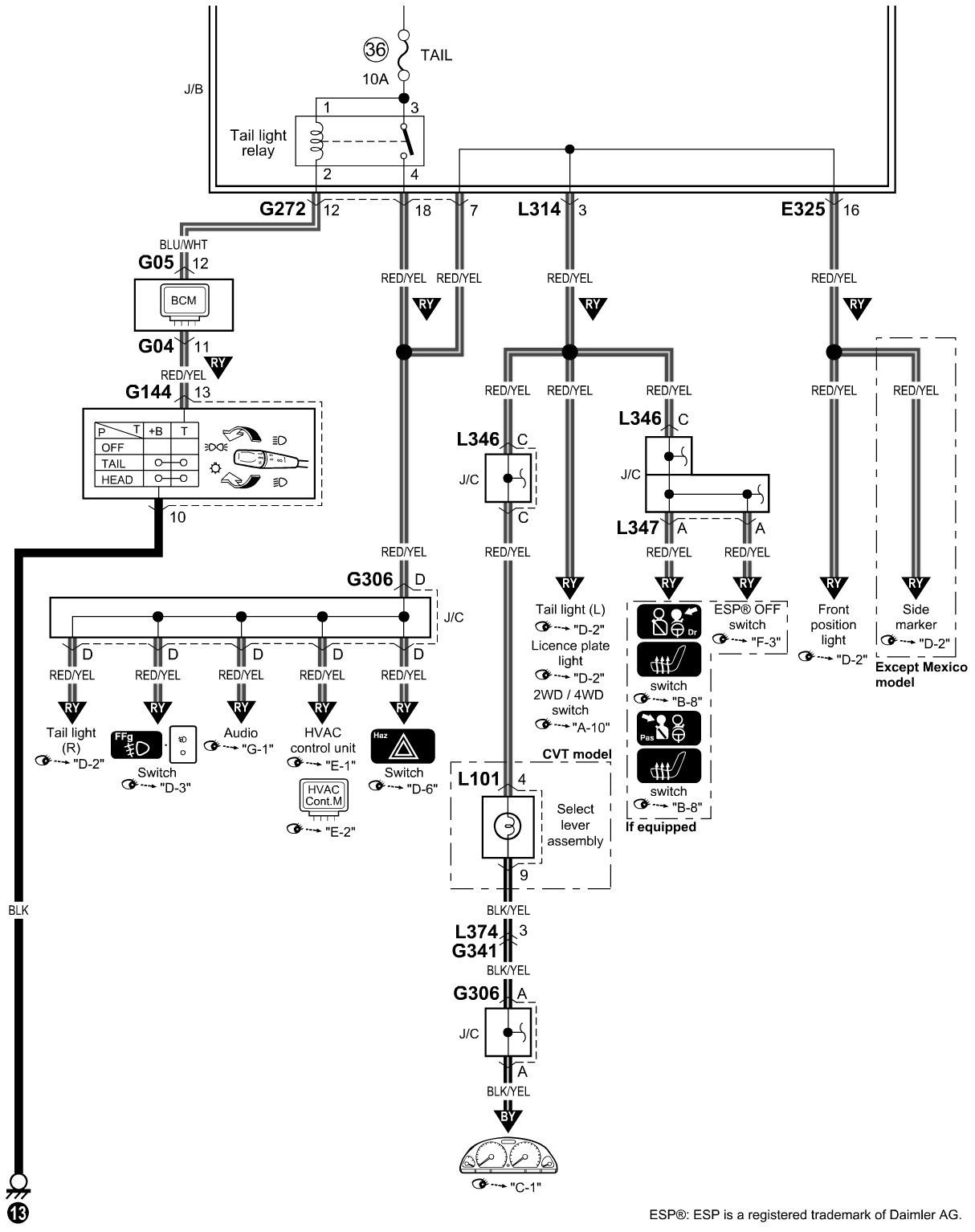

D-4 Illumination Light System Circuit Diagram
D-4 Illumination Light System Circuit Diagram
D-4 Illumination Light System Circuit Diagram
