Rear Door Panel: Service and Repair

Rear Door Panel Removal and Installation

Rear Door Panel Components

Removal

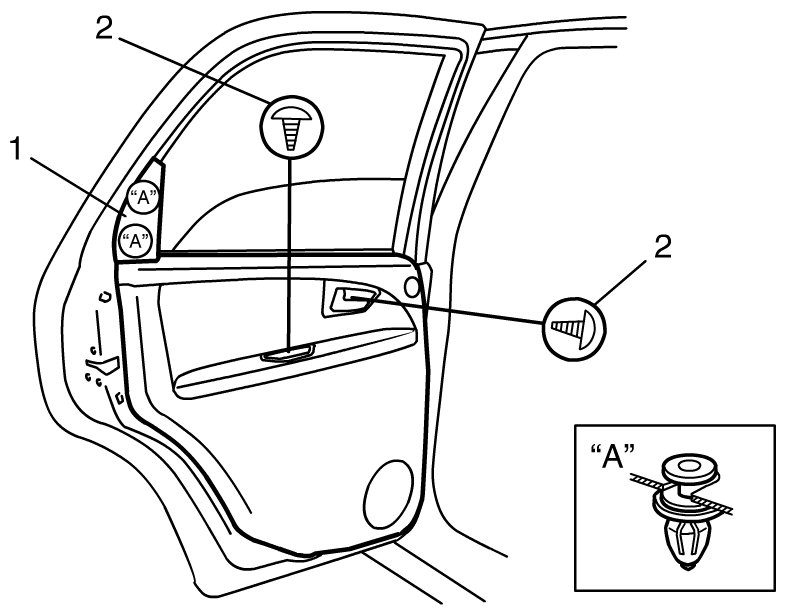

1) Remove rear door inner garnish (1) (Hatchback).
2) Remove door trim mounting screws (2).

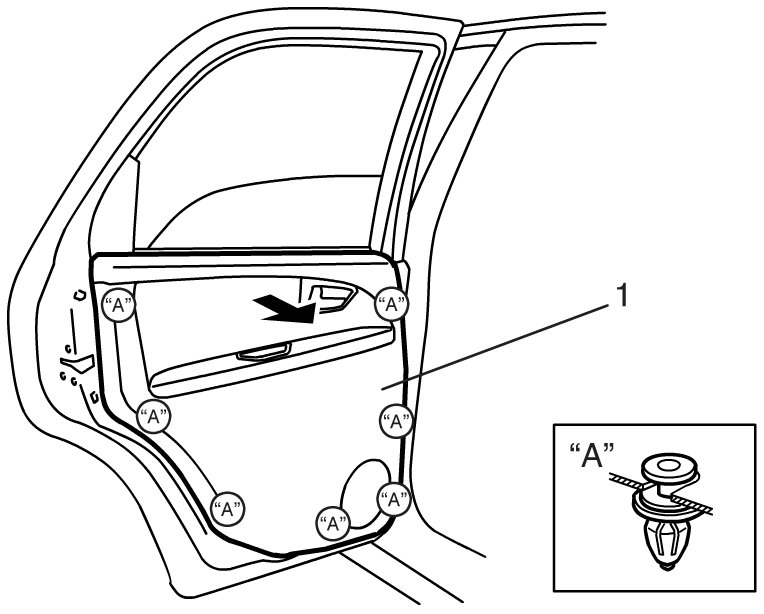

3) Remove door trim (1) as shown.






Installation

Reverse removal procedure noting the following instructions.


- Install rear door trim.

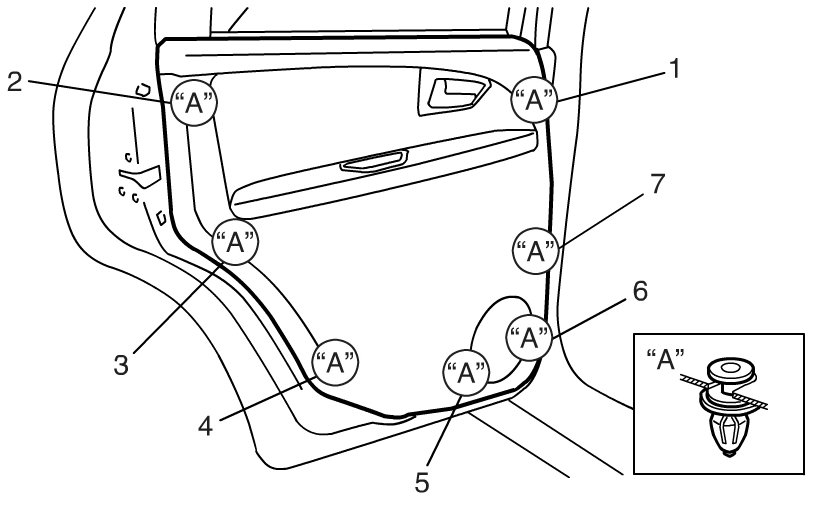

Rear door trim attaching order
(1) -> (2) -> (3) -> (4) -> (5) -> (6) -> (7)
