Locks, Hinges and Hood Latches: Lubrication

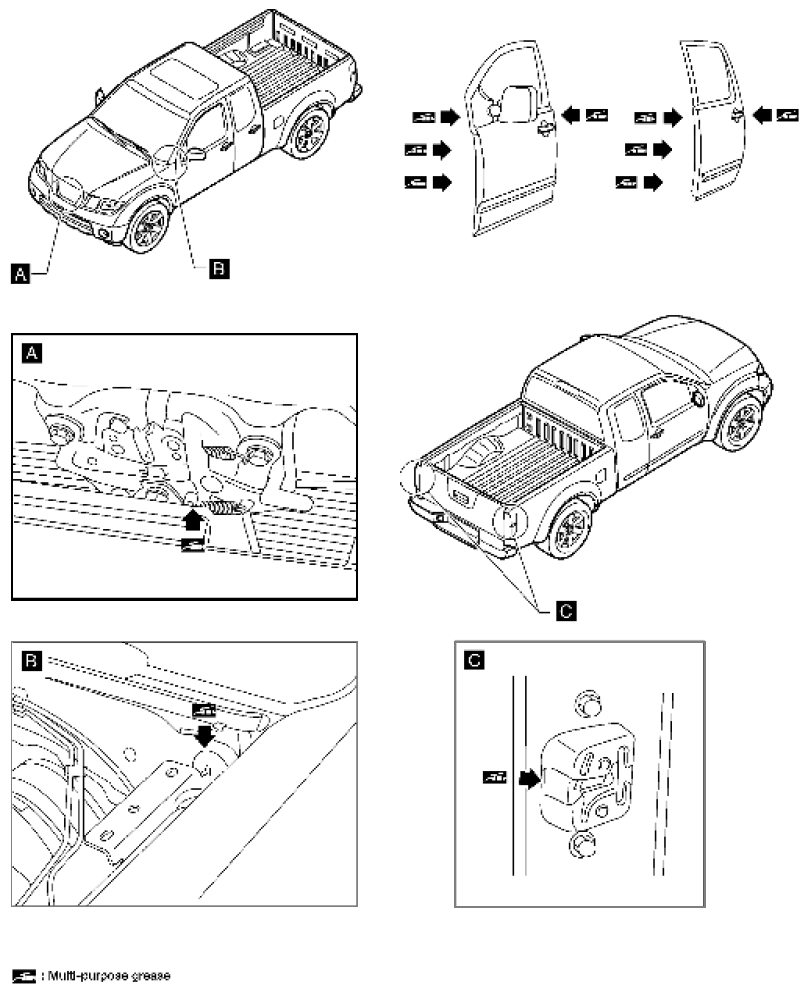

Fig 1: Identifying Lubricate Locations Of Locks, Hinges And Hood Latches

G06440661

Courtesy of SUZUKI OF AMERICA CORP.

Lubricate the locations shown.
Refer to [Recommended Fluids and Lubricants [for USA and Canada] ] (United States and Canada), [Recommended Fluids and Lubricants [for Mexico] ] (Mexico).
