Section 5 (Engine Lubrication System - Qr25DE)
>>
Repair Instruction
>>
Oil Pan: Exploded View
Oil Pan: Exploded View
WARNING:
This page is about a different variant/trim than selected.

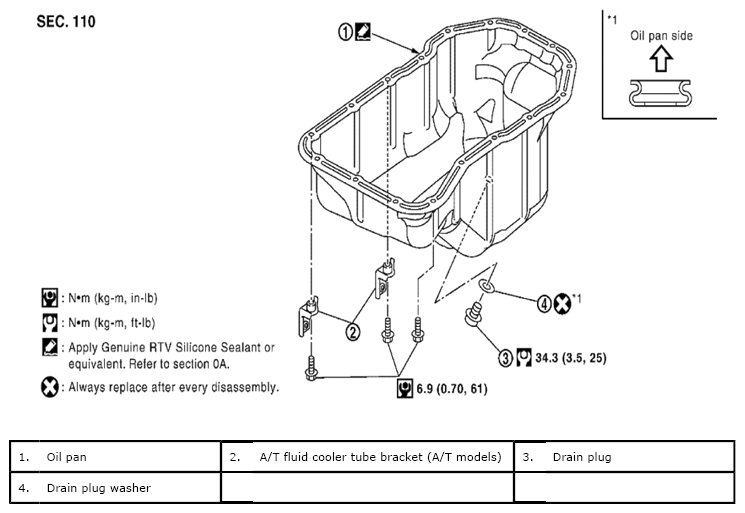

Fig 1: Oil Pan With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
