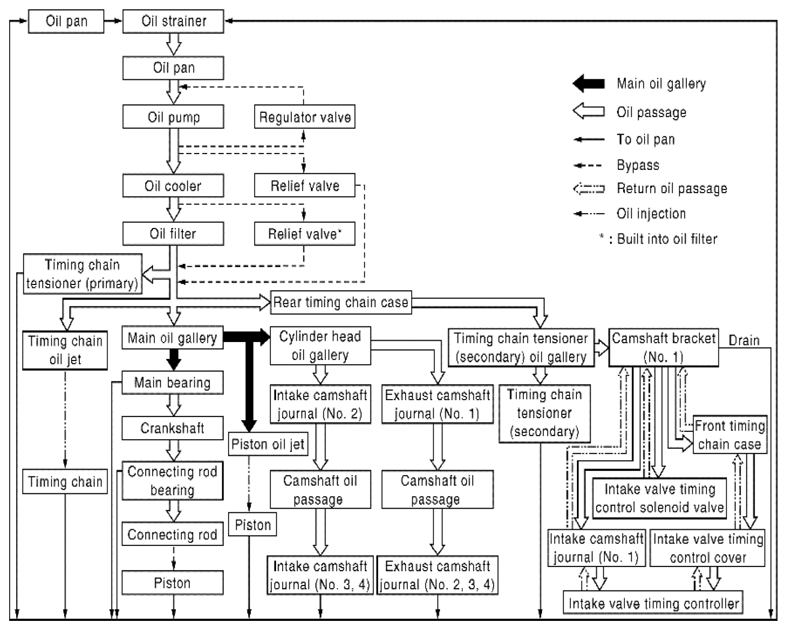

Home >> Suzuki >> 2012 >> Equator RMZ-4 >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> Engine Lubrication System - VQ40DE >> Schematic and Routing Diagram >> Lubrication System: System Chart
