Oil Pan and Oil Strainer: Exploded View

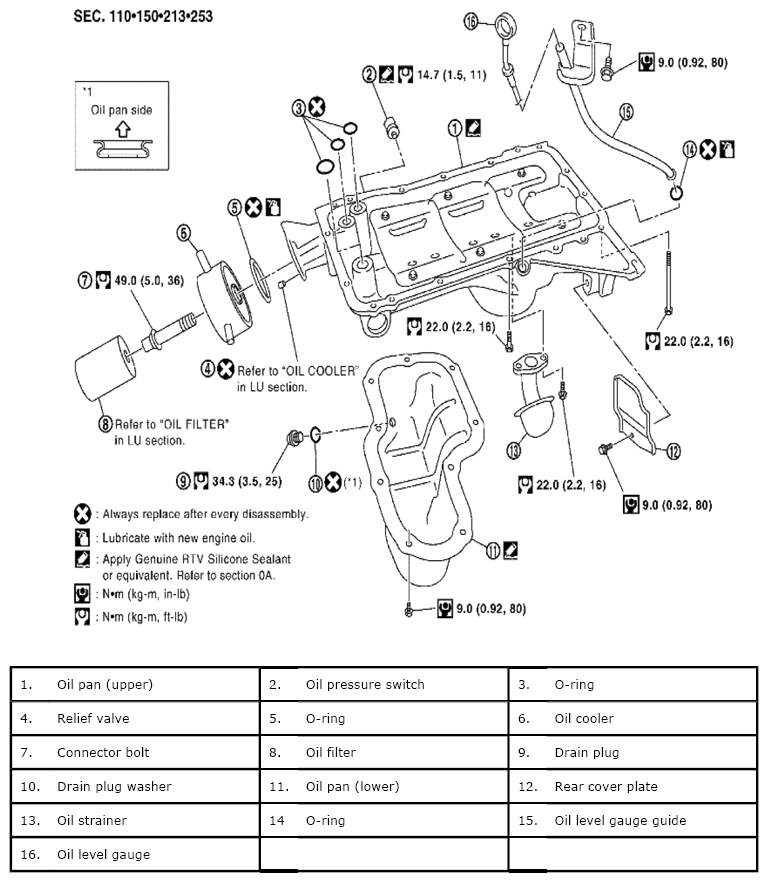

Fig 1: Exploded View Of Oil Pan And Oil Strainer With Torque Specifications

G06444465

Courtesy of SUZUKI OF AMERICA CORP.
