Water Outlet and Water Piping: Exploded View

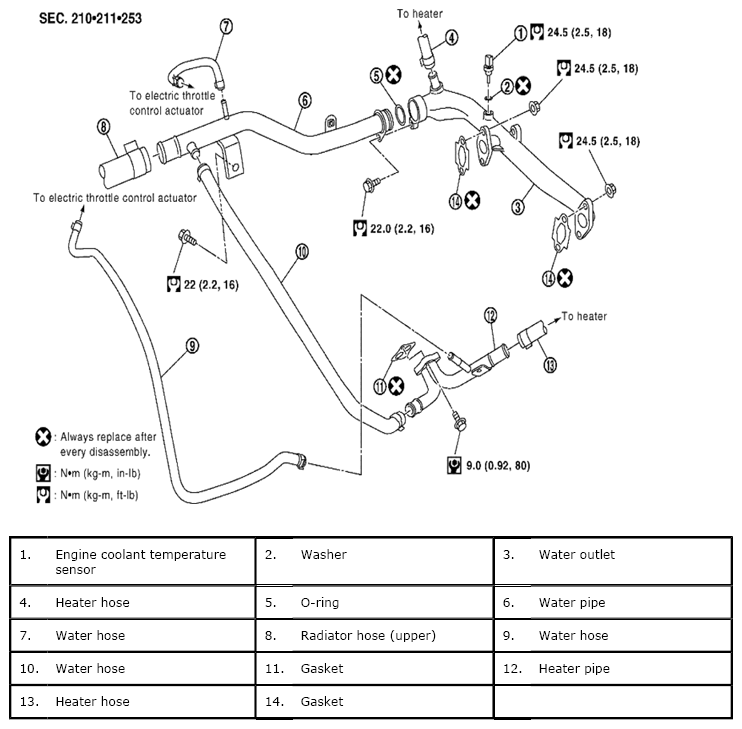

Fig 1: Exploded View Of Water Outlet And Water Piping With Torque Specifications

G06444551

Courtesy of SUZUKI OF AMERICA CORP.
