Suzuki
>>
2012
>>
Equator RMZ-4
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
Wiring Systems
>>
System Circuit Diagram
>>
Headlamp: Wiring Diagram
Headlamp: Wiring Diagram

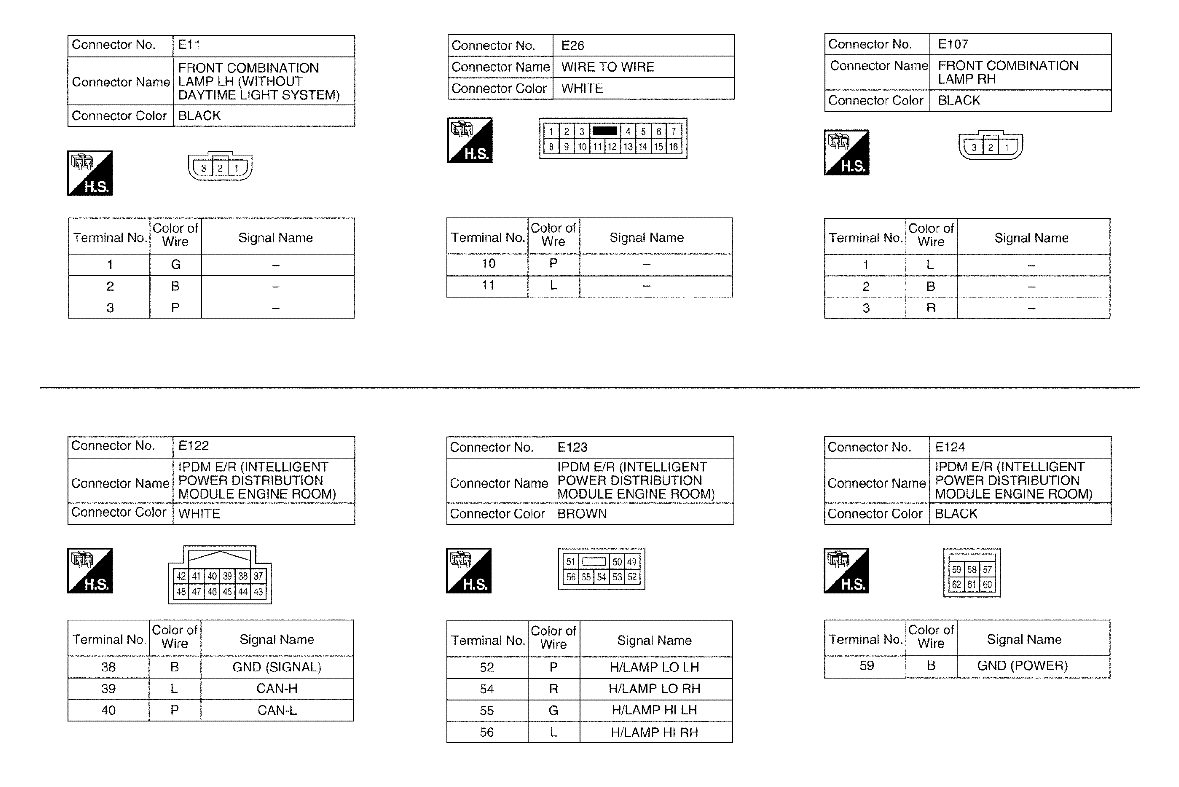

Fig 1: Headlamp - Wiring Diagram (1 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.

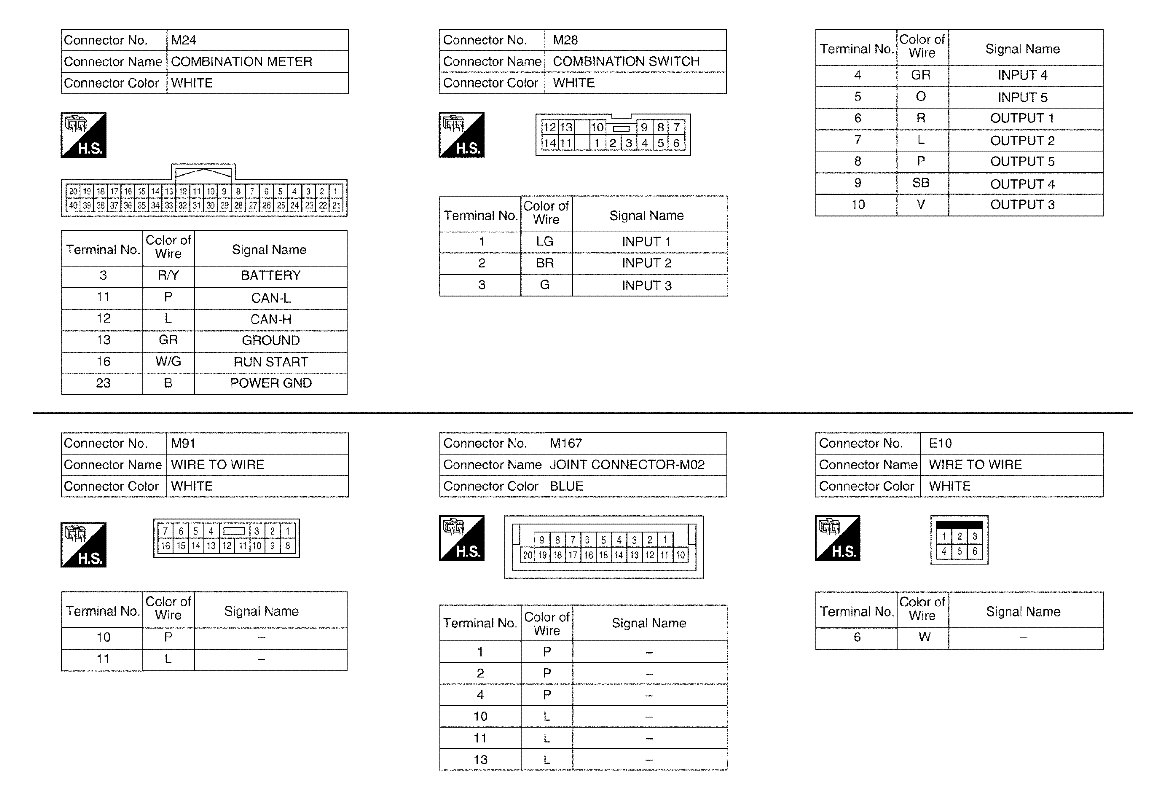

Fig 2: Headlamp - Wiring Diagram (2 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.
Fig 3: Headlamp - Wiring Diagram (3 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.
Fig 4: Headlamp - Wiring Diagram (4 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.
