Without SDT

Remove EVAP canister vent control valve from EVAP canister.
Check portion B of EVAP canister vent control valve for being rusted.

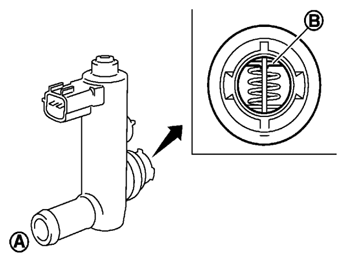

Fig 1: Checking Portion B Of EVAP Canister Vent Control Valve For Being Rusted - Without SDT
Courtesy of SUZUKI OF AMERICA CORP.

Check air passage continuity and operation delay time under the following conditions.

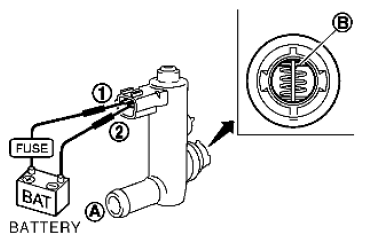

Fig 2: Checking Air Passage Continuity

Courtesy of SUZUKI OF AMERICA CORP.

Check that new O-ring is installed properly.

CONTINUITY SPECIFICATION

Condition	Air passage continuity between (A) and (B)
12V direct current supply between terminals 1 and 2	No
OFF	Yes

Operation takes less than 1 second.

If NG, go to next step.

Clean the air passage (portion A to B ) of EVAP canister vent control valve using an air blower.
Perform step 3) again.
If NG, replace EVAP canister vent control valve.
