Without SDT

Check air passage continuity of EVAP canister purge volume control solenoid valve under the following conditions.

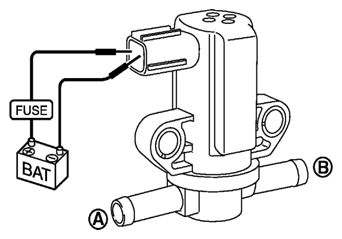

Fig 1: Checking Air Passage Continuity Of EVAP Canister Purge Volume Control Solenoid Valve - Without SDT

Courtesy of SUZUKI OF AMERICA CORP.

CONTINUITY SPECIFICATION

Condition	Air passage continuity between (A) and (B)
12V direct current supply between terminals 1 and 2	Yes
No supply	No
