Differential Gear Oil Leakage And Level

  1. Make sure that differential gear oil is not leaking from the rear final drive assembly or around it.
  2. Check the differential gear oil level from the filler plug hole as shown.

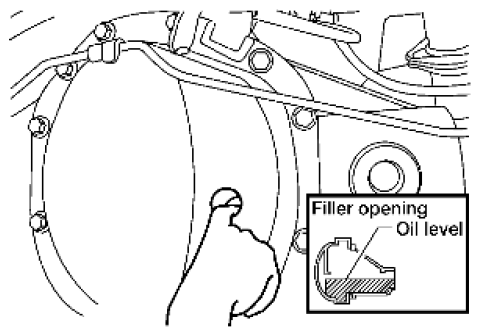

    Fig 1: Checking Differential Gear Oil Level From Filler Plug Hole
    G06440645Courtesy of SUZUKI OF AMERICA CORP.
    CAUTION: Do not start engine while checking differential gear oil level.
  3. Install the filler plug with sealant applied on the threads to the rear final drive assembly. Tighten to the specified torque. Refer to [REAR FINAL DRIVE ASSEMBLY: DISASSEMBLY AND ASSEMBLY ]
