Differential Gear Oil: Change [R180A]: Draining

  1. Stop the engine.
  2. Remove the drain plug and gasket from the front final drive assembly to drain the differential gear oil.

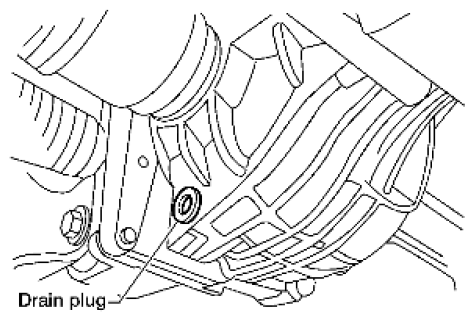

    Fig 1: Identifying Drain Plug
    G06440635Courtesy of SUZUKI OF AMERICA CORP.
  3. Install the drain plug with a new gasket to the front final drive assembly. Tighten to the specified torque. Refer to [FRONT FINAL DRIVE: DISASSEMBLY AND ASSEMBLY ]
    CAUTION: Do not reuse gasket.
