Air Cleaner: Removal and Installation [QR25DE]: Removal

  1. Unfasten clips and lift up air cleaner case (upper).

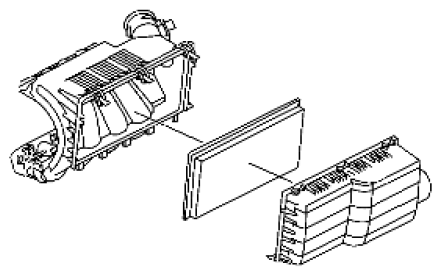

    Fig 1: Identifying Air Cleaner Case (Upper) And Air Cleaner Filter
    G06440593Courtesy of SUZUKI OF AMERICA CORP.
  2. Remove air cleaner filter.
