Valve Oil Seal: Removal and Installation: Removal

Turn crankshaft until the cylinder requiring new oil seals is at TDC. This will prevent valve from dropping into cylinder.
Remove camshaft relating to valve oil seal to be removed. Refer to [CAMSHAFT: REMOVAL AND INSTALLATION ].
Remove valve lifters. Refer to [CAMSHAFT: REMOVAL AND INSTALLATION ].
Remove valve collet, valve spring retainer and valve spring using Tool.

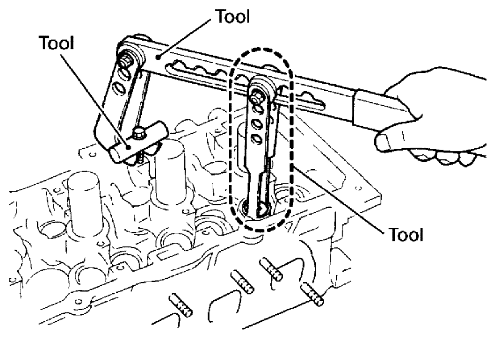

Fig 1: Removing Valve Collet, Valve Spring Retainer And Valve Spring Using Tool
Courtesy of SUZUKI OF AMERICA CORP.

CAUTION: When working, take care not to damage valve lifter holes.

Tool numbers: KV10116200 (J-26336 -B)

: KV10115900 (J-26336 -20)

: KV10109220 (-)
- Compress valve spring using Tool attachment, adapter. Remove valve collet with magnet hand.
Remove valve oil seal using Tool.

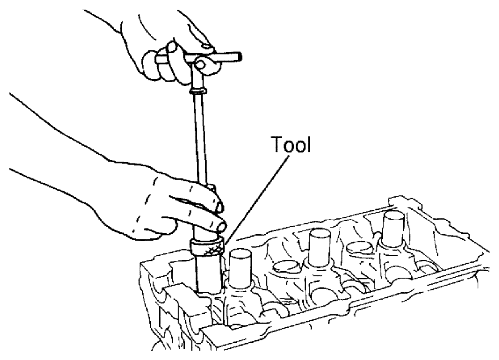

Fig 2: Removing Valve Oil Seal Using Tool
Courtesy of SUZUKI OF AMERICA CORP.

Tool number: KV10107902 (J-38959)
