Valve Oil Seal: Removal and Installation: Installation
- Apply new engine oil to new valve oil seal joint surface and seal lip.

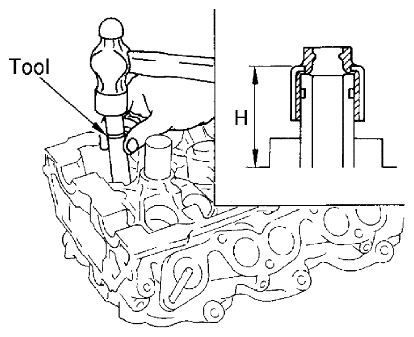

- Press in valve oil seal to specified height (H) using Tool.
Courtesy of SUZUKI OF AMERICA CORP.
Tool number: - (J-39386)
NOTE: Dimension (H): height measured before valve spring seat installation.Intake and exhaust: 14.3 - 14.9 mm (0.563 - 0.587 in)
- Installation of the remaining components is in the reverse order of removal.
