Secondary Timing Chain Tensioner Shoe Removal and Installation: Removal

  1. Remove the timing chains (secondary). Refer to [Secondary Timing Chain Tensioner Removal and Installation ].
  2. Remove the secondary timing chain tensioner shoe by evenly prying at base of shoe with suitable tool as shown.

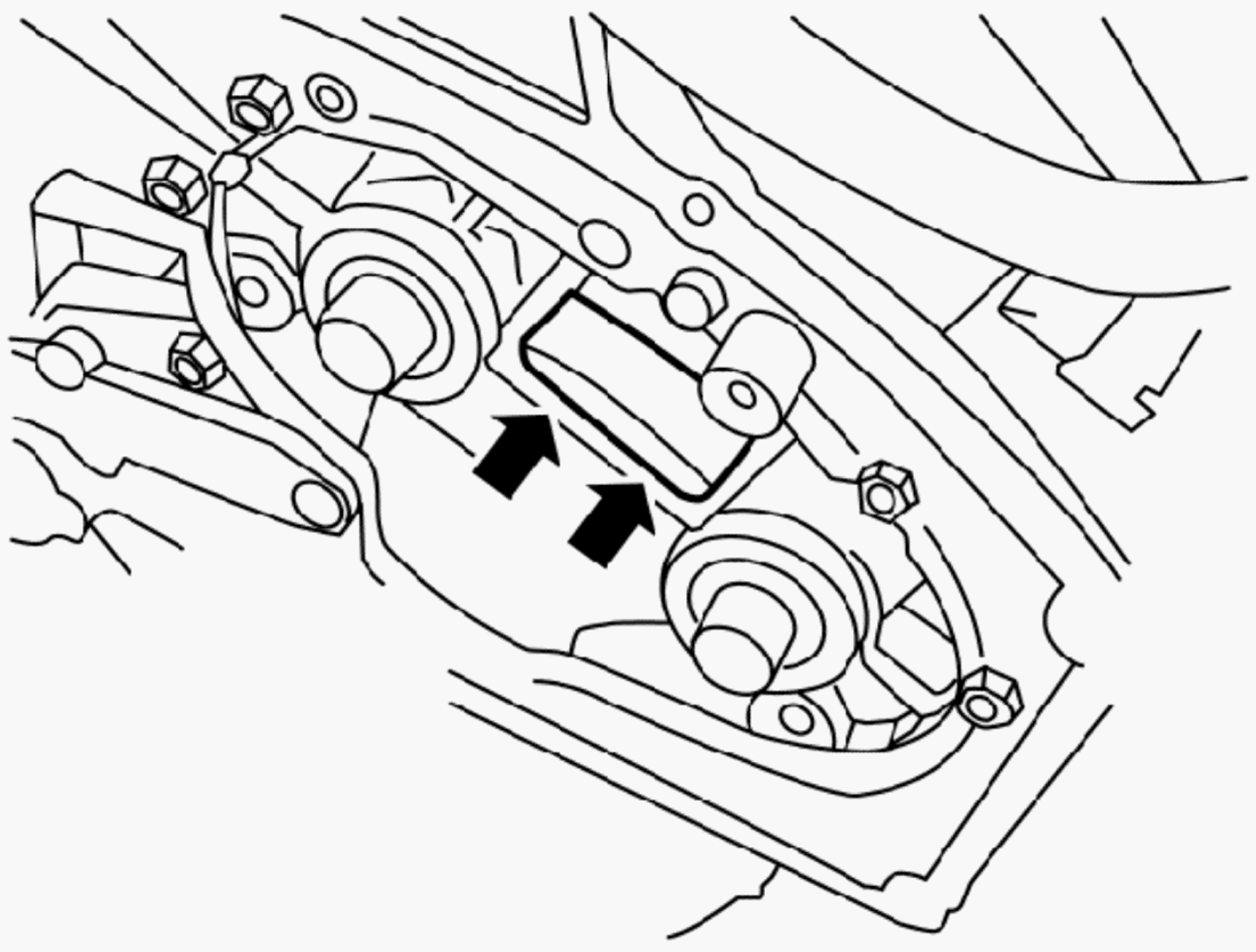

    Fig 1: Identifying Secondary Timing Chain Tensioner Shoe
    G00512543Courtesy of SUZUKI OF AMERICA CORP.
