Secondary Timing Chain Tensioner Shoe Removal and Installation: Installation

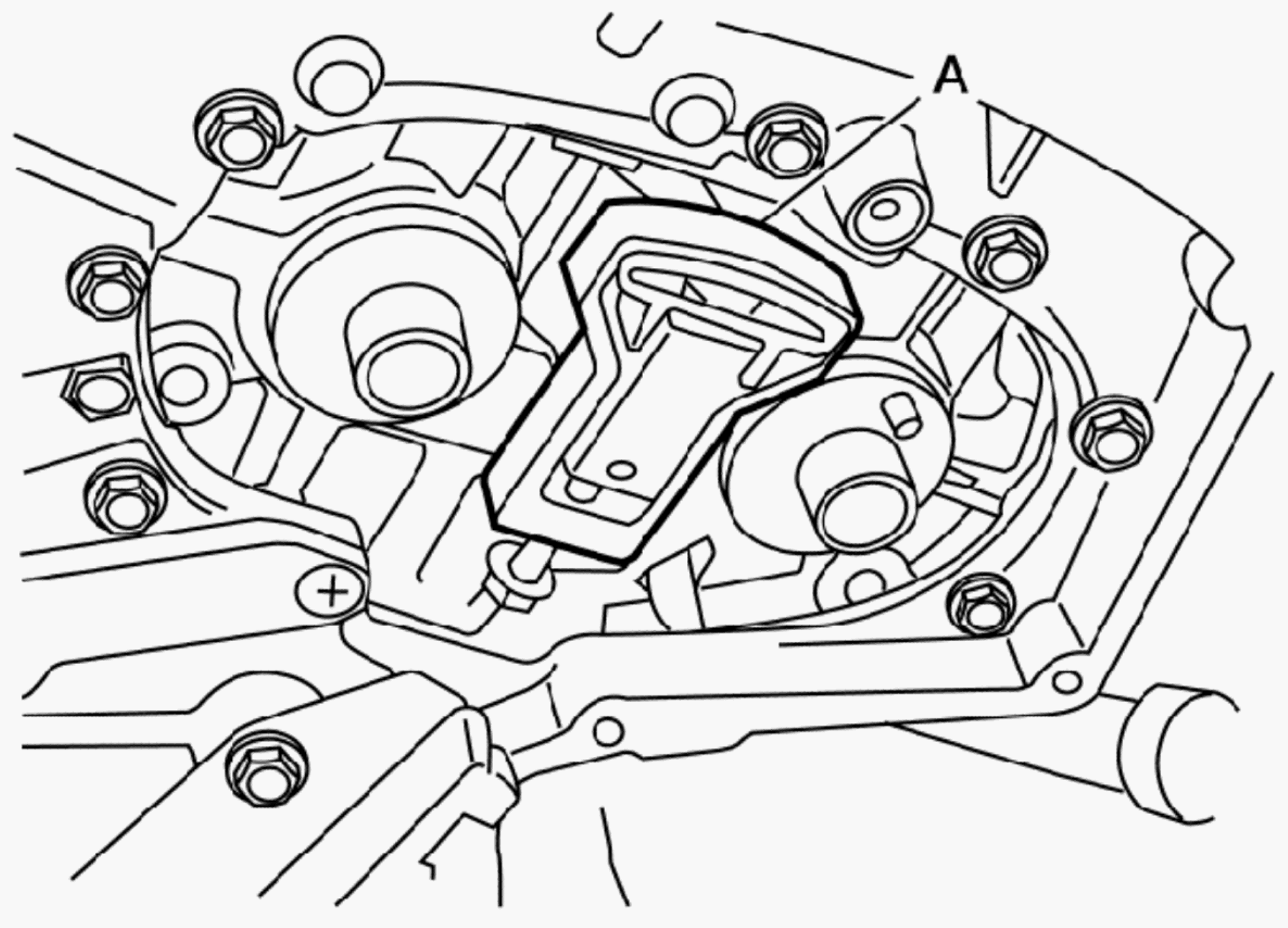

- Install new secondary timing chain tensioner shoe using Tool (A) as shown.
Courtesy of SUZUKI OF AMERICA CORP.
- Tighten the bolt until the secondary timing chain tensioner shoe is fully seated on the secondary timing chain tensioner.CAUTION: Do not overtighten bolt.
Tool number : - (J-50246)
- Tighten the bolt until the secondary timing chain tensioner shoe is fully seated on the secondary timing chain tensioner.
- Installation of the remaining components is in the reverse order of removal.
