Removal (RH)

  1. Remove intake manifold collector. Refer to [INTAKE MANIFOLD COLLECTOR: REMOVAL AND INSTALLATION ].
    CAUTION: Perform this step when engine is cold.
  2. Separate engine harness removing their brackets from rocker covers.
  3. Remove harness bracket from cylinder head (RH). Refer to [CYLINDER HEAD: REMOVAL AND INSTALLATION ].
  4. Disconnect and remove the intake valve timing control solenoid valve (RH bank). Refer to Front Timing Chain Case: Exploded View
  5. Remove the ignition coils. Refer to [IGNITION COIL: REMOVAL AND INSTALLATION ]
  6. Remove the PCV hoses from rocker cover.
  7. Remove the PCV valve and O-ring from rocker cover (RH), if necessary.

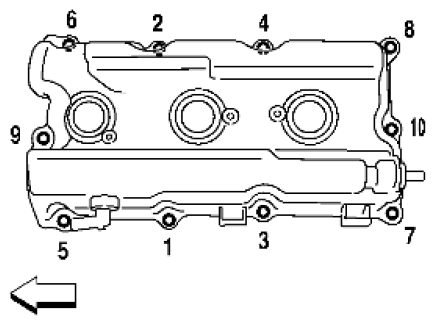

  8. Remove the rocker cover bolts using power tool in reverse order as shown.
    Fig 1: Rocker Cover Bolts Loosening Sequence
    G06440908Courtesy of SUZUKI OF AMERICA CORP.
    • <==: Front
  9. Remove rocker cover gaskets from rocker covers.
  10. Use scraper to remove all traces of liquid gasket from cylinder head and camshaft bracket (No. 1).
    CAUTION: Do not scratch or damage the mating surface when cleaning off old liquid gasket.
