Rear Oil Seal: Removal and Installation: Removal

  1. Remove transmission assembly. Refer to [TRANSMISSION ASSEMBLY: REMOVAL AND INSTALLATION FROM VEHICLE ] (For 2WD Models), [TRANSMISSION ASSEMBLY: REMOVAL AND INSTALLATION FROM VEHICLE ] (For 4WD Models).
  2. Remove drive plate (A/T models) or flywheel (M/T models). Refer to [ENGINE UNIT: EXPLODED VIEW ].
  3. Remove rear oil seal with a suitable tool.

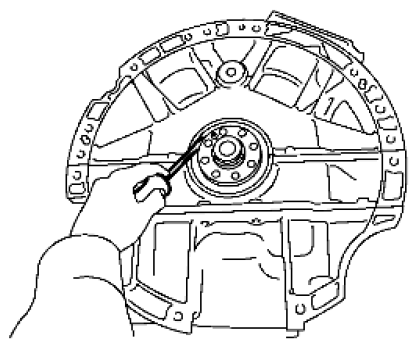

    Fig 1: Removing Rear Oil Seal With Suitable Tool
    G06441030Courtesy of SUZUKI OF AMERICA CORP.
    CAUTION: Be careful not to damage crankshaft and cylinder block.
