Rear Oil Seal: Removal and Installation: Installation

Apply new engine oil to new rear oil seal joint surface and seal lip.
Install rear oil seal so that each seal lip is oriented as shown.

Fig 1: Installing Rear Oil Seal
Courtesy of SUZUKI OF AMERICA CORP.

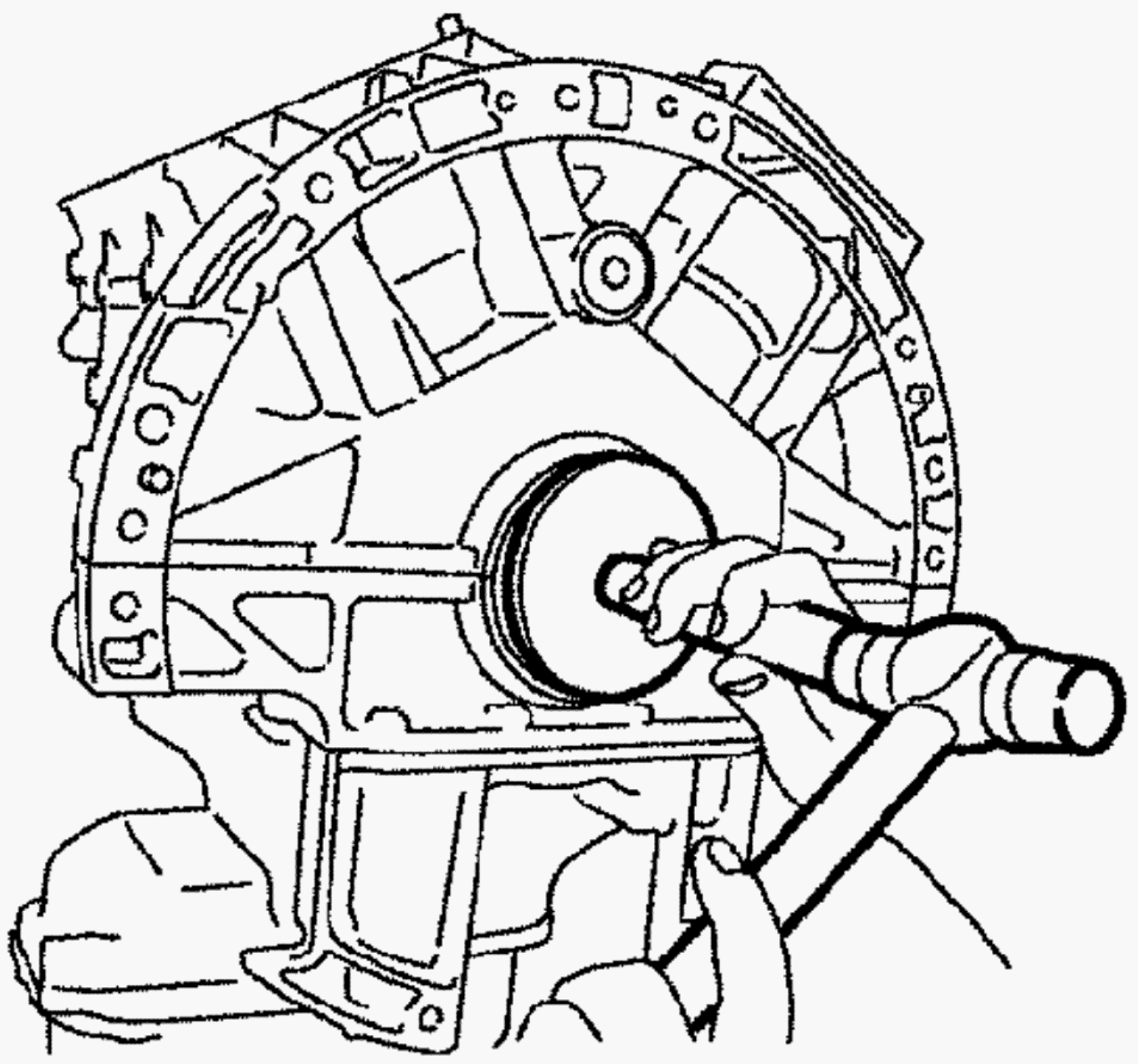

- Install new rear oil seal using Tool.

  Fig 2: Installing Rear Oil Seal Using Tool
  Courtesy of SUZUKI OF AMERICA CORP.

  Tool number : - (J-49815) : - (J-8092)
  CAUTION:
  - Be careful not to damage crankshaft and cylinder block.
  - Press-fit oil seal straight to avoid causing burrs or tilting.
  - Do not touch grease applied onto oil seal lip.
- Press in rear oil seal to the position as shown.

  Fig 3: Pressing Rear Oil Seal
  Courtesy of SUZUKI OF AMERICA CORP.
Installation of the remaining components is in the reverse order of removal.
CAUTION:
- When replacing an engine or transmission you must make sure the dowels are installed correctly during reassembly.
- Improper alignment caused by missing dowels may cause vibration, oil leaks or breakage of drivetrain components.
