When New Cylinder Block and Crankshaft are Used

  1. "Main Bearing Selection Table" rows correspond to bearing housing grade on rear left side of cylinder block.

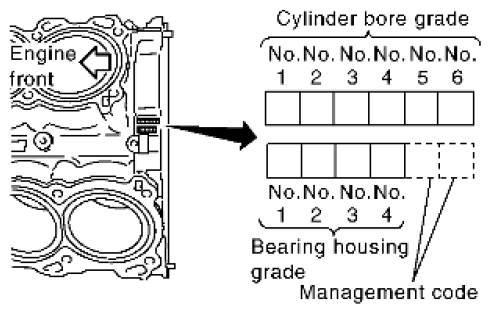

    Fig 1: Identifying Bearing Housing Grade And Cylinder Bore Grade
    G06441140Courtesy of SUZUKI OF AMERICA CORP.
  2. "Main Bearing Selection Table" columns correspond to journal diameter grade on front side of crankshaft.

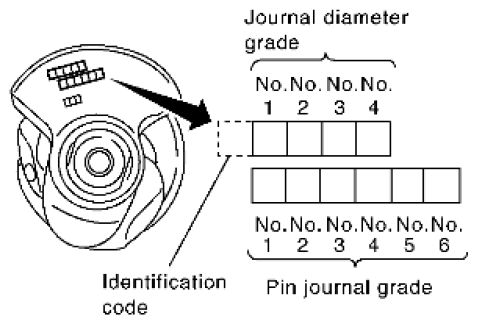

    Fig 2: Identifying Pin Journal Grade And Journal Diameter Grade
    G06441141Courtesy of SUZUKI OF AMERICA CORP.
  3. Select main bearing grade at the point where selected row and column meet in "Main Bearing Selection Table".
