Front Oil Seal: Removal and Installation: Removal

  1. Remove engine undercover using power tools. Refer FRONT BUMPER: REMOVAL AND INSTALLATION
  2. Remove drive belts. Refer to [DRIVE BELTS: REMOVAL AND INSTALLATION ].
  3. Remove engine cooling fan assembly. Refer to [ENGINE COOLING FAN: REMOVAL AND INSTALLATION (CRANKSHAFT DRIVEN TYPE) ]
  4. Remove crankshaft pulley. Refer to [TIMING CHAIN: REMOVAL AND INSTALLATION ].
  5. Remove front oil seal using suitable tool.

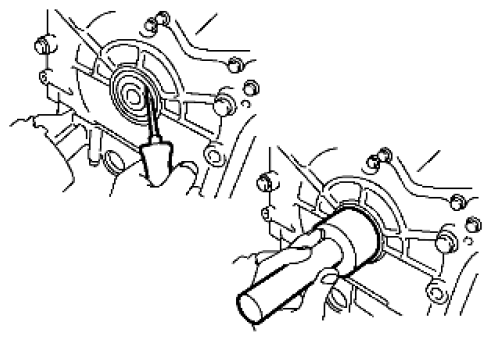

    Fig 1: Removing Front Oil Seal Using Suitable Tool
    G06441027Courtesy of SUZUKI OF AMERICA CORP.
    CAUTION: Be careful not to damage front timing chain case and crankshaft.
