Piston Skirt Diameter

Measure the outer diameter of piston skirt with micrometer.

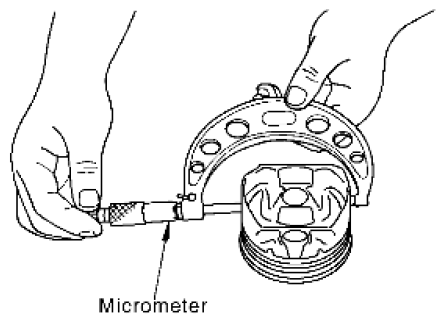

Fig 1: Measuring Outer Diameter Of Piston Skirt With Micrometer
G06441114Courtesy of SUZUKI OF AMERICA CORP.

Measure point

: Distance from the top 43.03 mm (1.6941 in)

Standard

: 95.480 - 95.510 mm (3.7590 - 3.7602 in)
