Cylinder Bore Inner Diameter

Using bore gauge, measure cylinder bore for wear, out-of-round and taper at six different points on each cylinder. [(X) and (Y) directions at (A), (B) and (C)] [(X) is in longitudinal direction of engine].

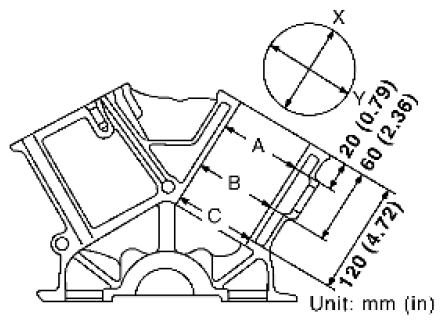

Fig 1: Measuring Cylinder Bore For Wear, Out-Of-Round And Taper
Courtesy of SUZUKI OF AMERICA CORP.

Standard inner diameter:

95.500 - 95.530 mm (3.7598 - 3.7610 in)

Out-of-round [Difference between (X) and (Y)]:

0.015 mm (0.0006 in)

Taper limit [Difference between (A) and (C)]:

0.01 mm (0.0004 in)
If the measured value exceeds the limit, or if there are scratches and/or seizure on the cylinder inner wall, hone or re-bore the inner wall.

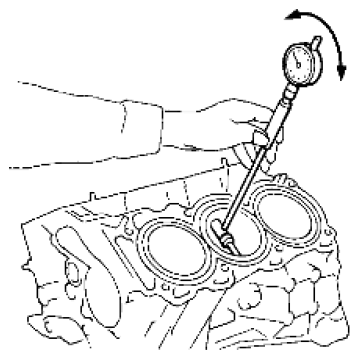

Fig 2: Measuring Piston Inner Diameter
Courtesy of SUZUKI OF AMERICA CORP.
