Drive Belts: Removal and Installation: Removal

  1. Remove air duct and resonator assembly. Refer to [AIR CLEANER AND AIR DUCT: REMOVAL AND INSTALLATION ].
  2. Rotate the drive belt auto tensioner in the direction of arrow (loosening direction of tensioner) as shown, using suitable tool.

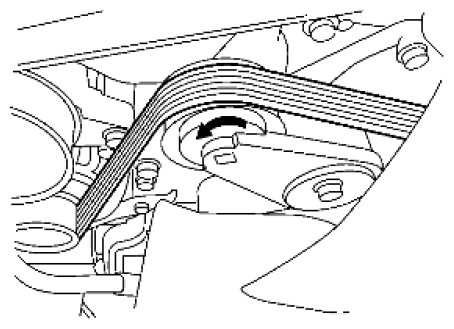

    Fig 1: Rotating Drive Belt Auto Tensioner
    G06440877Courtesy of SUZUKI OF AMERICA CORP.
    WARNING: Avoid placing hand in a location where pinching may occur if the tool accidentally comes off.
  3. Remove the drive belt.
