Valve Stem Diameter

Measure the diameter of valve stem with micrometer.

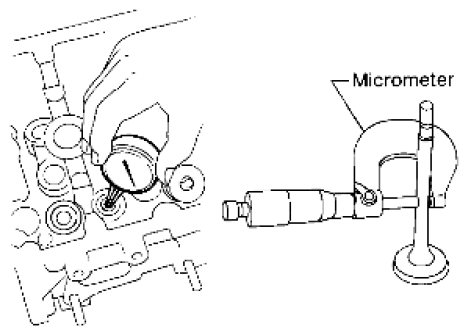

Fig 1: Measuring Diameter Of Valve Stem With Micrometer
G06441049Courtesy of SUZUKI OF AMERICA CORP.

Standard

Intake: 5.965 - 5.980 mm (0.2348 - 0.2354 in)

Exhaust: 5.955 - 5.970 mm (0.2344 - 0.2350 in)
