Valve Lifter Hole Diameter

Measure the inner diameter of valve lifter hole of cylinder head with inside micrometer.

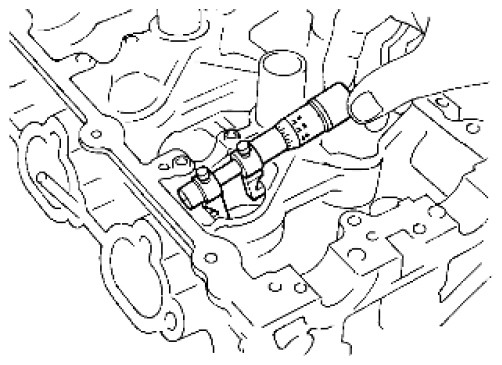

Fig 1: Measuring Inner Diameter Of Valve Lifter Hole Of Cylinder Head With Inside Micrometer
Courtesy of SUZUKI OF AMERICA CORP.

Standard (Intake and exhaust)

: 34.000 - 34.016 mm (1.3386 - 1.3392 in)
