Camshaft Bracket Inner Diameter
- Tighten camshaft bracket bolt with the specified torque.

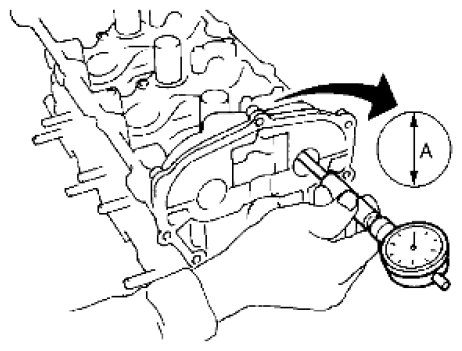

- Measure the inner diameter "A" of camshaft bracket with bore gauge.
Courtesy of SUZUKI OF AMERICA CORP.
Standard:
No. 1: 26.000 - 26.021 mm (1.0236 - 1.0244 in)
No. 2, 3, 4: 23.500 - 23.521 mm (0.9252 - 0.9260 in)
