Camshaft Cam Height

Measure the camshaft cam height with micrometer.

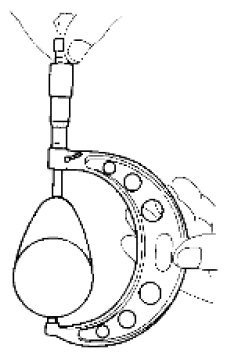

Fig 1: Measuring Camshaft Cam Height With Micrometer
Courtesy of SUZUKI OF AMERICA CORP.

Standard:

Intake: 45.465 - 45.655 mm (1.7900 - 1.7974 in)

Exhaust: 45.075 - 45.265 mm (1.7746 - 1.7821 in)

Limit:

Intake: 45.265 mm (1.7821 in)

Exhaust: 44.875 mm (1.7667 in)
If wear exceeds the limit, replace camshaft.
