Camshaft Valve Clearance: Adjustment

  1. Measure the valve clearance.
  2. Remove camshaft. Refer to [CAMSHAFT: REMOVAL AND INSTALLATION ].
  3. Remove valve lifters at the locations that are out of the standard.
  4. Measure the center thickness of removed valve lifters with micrometer.

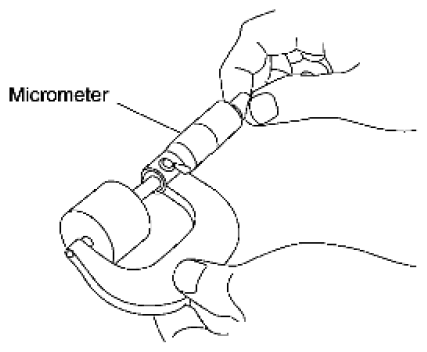

    Fig 1: Measuring Center Thickness Of Removed Valve Lifters With Micrometer
    G06440887Courtesy of SUZUKI OF AMERICA CORP.
  5. Use the equation below to calculate valve lifter thickness for replacement.

    Valve lifter thickness calculation: t = t 1  + (C 1  - C 2  )

    t = Valve lifter thickness to be replaced

    1  = Removed valve lifter thickness

    1  = Measured valve clearance

    2  = Standard valve clearance:

    Intake: 0.30 mm (0.012 in)*

    Exhaust: 0.33 mm (0.013 in)*

    *: Approximately 20 °C (68 °F)

    • Thickness of new valve lifter can be identified by stamp marks on the reverse side (inside the cylinder).
      Fig 2: Identifying Thickness Of Valve Lifter
      G06440888Courtesy of SUZUKI OF AMERICA CORP.

      Intake

      THICKNESS CHART

      Stamp mark Thickness
      788U 7.88 mm (0.3102 in)
      790U 7.90 mm (0.3110 in)
      . .
      . .
      840U 8.40 mm (0.3307 in)

      Available thickness of valve lifter: 27 sizes with range 7.88 to 8.40 mm (0.3102 to 0.3307 in) in steps of 0.02 mm (0.0008 in) (when manufactured at factory). Refer to [SERVICE DATA AND SPECIFICATIONS ].

      Exhaust

      THICKNESS CHART

      Stamp mark Thickness
      N788 7.88 mm (0.3102 in)
      N790 7.90 mm (0.3110 in)
      . .
      . .
      N836 8.36 mm (0.3291 in)

      Available thickness of valve lifter: 25 sizes with range 7.88 to 8.36 mm (0.3102 to 0.3291 in) in steps of 0.02 mm (0.0008 in) (when manufactured at factory). Refer to [SERVICE DATA AND SPECIFICATIONS ].

      CAUTION: Install identification letter at the end and top, "U" and "N", at each of proper positions. (Be careful of mis-installation between intake and exhaust.)
  6. Install selected valve lifter.
  7. Install camshaft. Refer to [CAMSHAFT: REMOVAL AND INSTALLATION ].
  8. Manually turn crankshaft pulley a few turns.
  9. Make sure that the valve clearances for cold engine are within the specifications by referring to the specified values.
  10. Installation of the remaining components is in the reverse order of removal.
  11. Start the engine, and check for unusual noise and vibration.
