Inspection After Removal

Check for cracks and any excessive wear at link plates. Replace chain if necessary.

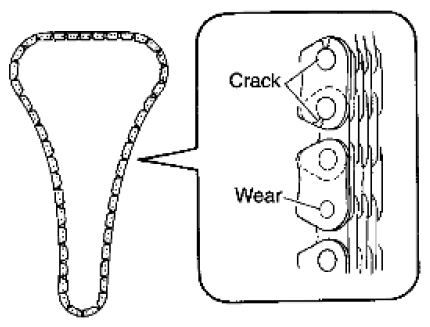

Fig 1: Checking Link Plates

Courtesy of SUZUKI OF AMERICA CORP.

• Inspect all timing chains and associated parts for wear or damage, replace as necessary.
