Intake Manifold: Removal and Installation: Removal

  1. Remove intake manifold collector. Refer to [INTAKE MANIFOLD COLLECTOR: REMOVAL AND INSTALLATION ].
  2. Remove fuel tube and fuel injector assembly. Refer to [FUEL INJECTOR AND FUEL TUBE: REMOVAL AND INSTALLATION [VQ40DE] ]
  3. Loosen nuts and bolts with power tool in reverse order as shown to remove intake manifold.

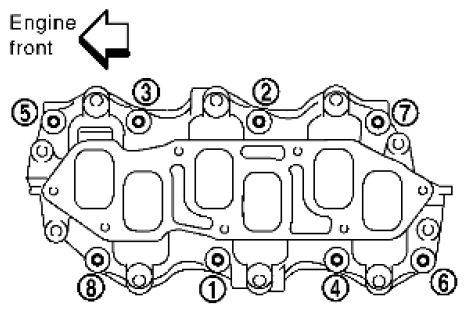

    Fig 1: Intake Manifold Nuts And Bolts Loosening Sequence
    G06440901Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove gaskets.
    CAUTION: Cover engine openings to avoid entry of foreign materials.
