Crankshaft Pin Journal Diameter

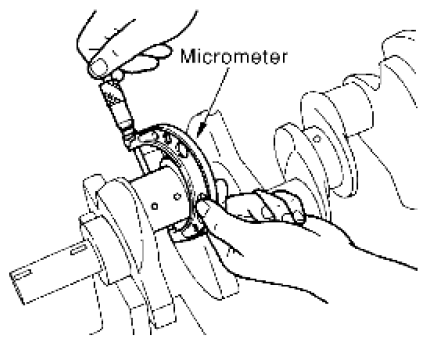

- Measure the outer diameter of crankshaft pin journal with micrometer.
Courtesy of SUZUKI OF AMERICA CORP.
Standard: 53.956 - 53.974 mm (2.1242 - 2.1250 in) dia.
- If out of the standard, measure the connecting rod bearing oil clearance. Then use undersize bearing.
