Connecting Rod Bushing Inside Diameter (Small End)

Measure inside diameter of connecting rod bushing using suitable tool.

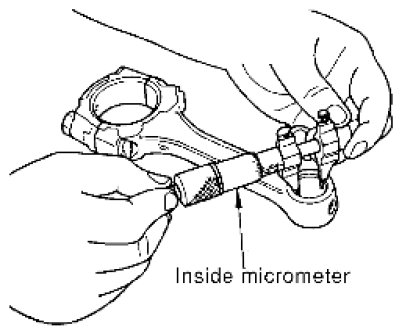

Fig 1: Measuring Inside Diameter Of Connecting Rod Bushing Using Suitable Tool
G06441106Courtesy of SUZUKI OF AMERICA CORP.

Standard: 22.000 - 22.012 mm (0.8661 - 0.8666 in)
