Engine Room Cover: Removal and Installation: Removal

  1. Remove the engine room cover bolts using power tool.

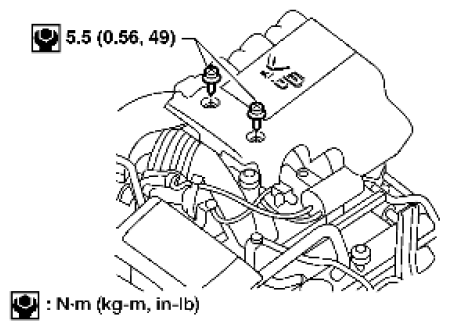

    Fig 1: Engine Room Cover Bolts With Torque Specifications
    G06440892Courtesy of SUZUKI OF AMERICA CORP.
  2. Lift up on engine cover firmly to dislodge snap fit mounts.
