Parking, License Plate and Tail Lamps System: Wiring Diagram

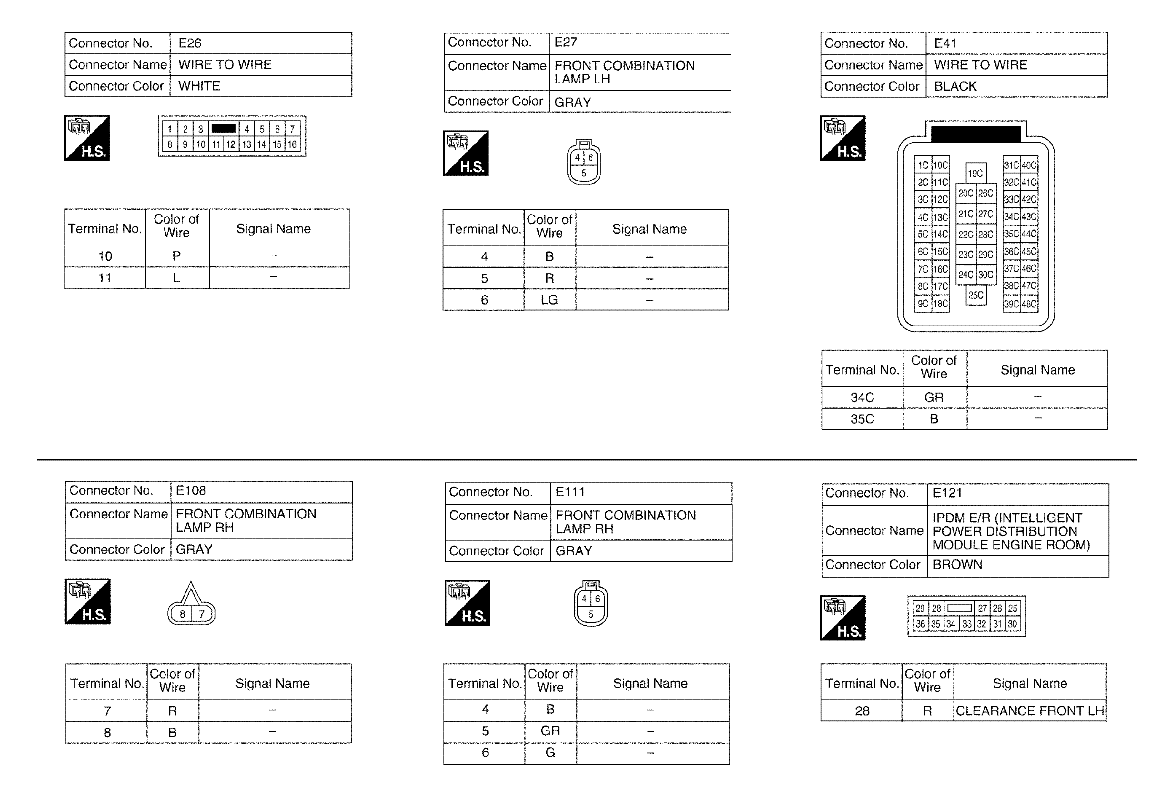

Fig 1: Parking, License Plate And Tail Lamps System - Wiring Diagram (1 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

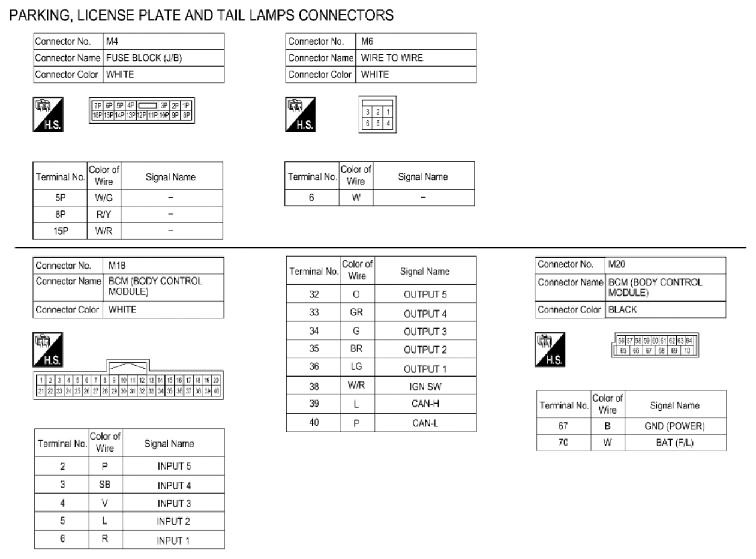

Fig 2: Parking, License Plate And Tail Lamps System - Wiring Diagram (2 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

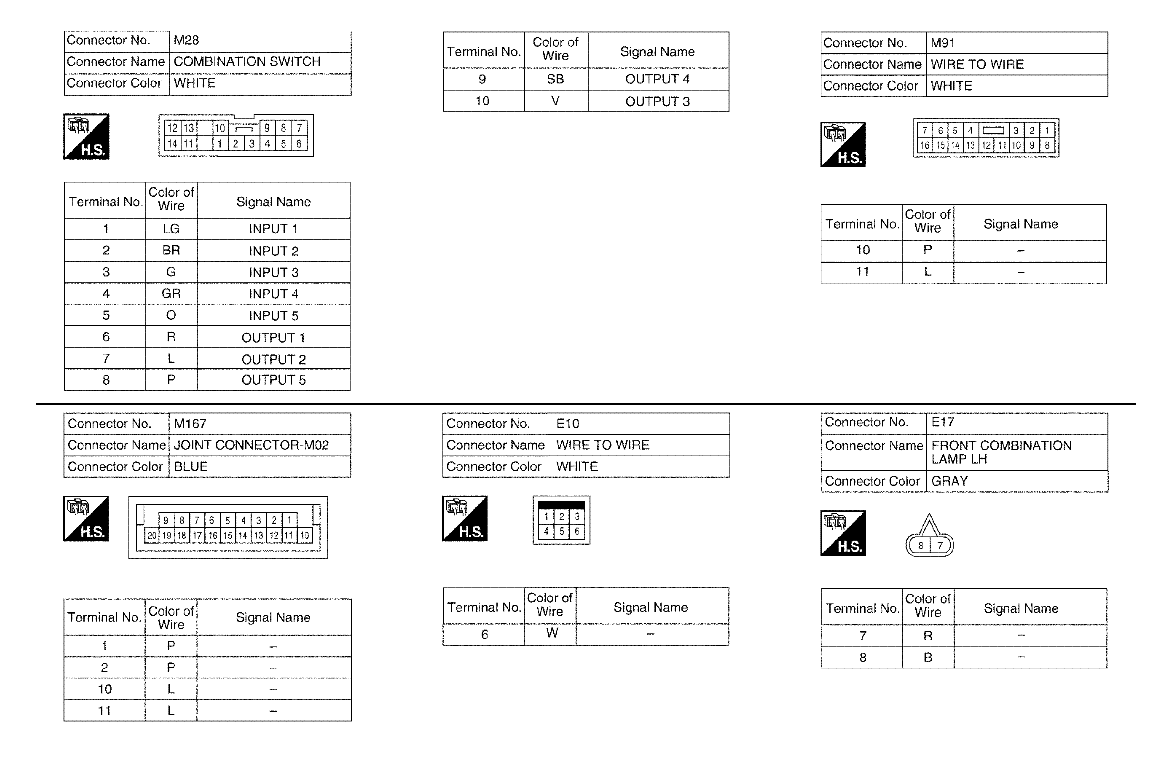

Fig 3: Parking, License Plate And Tail Lamps System - Wiring Diagram (3 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

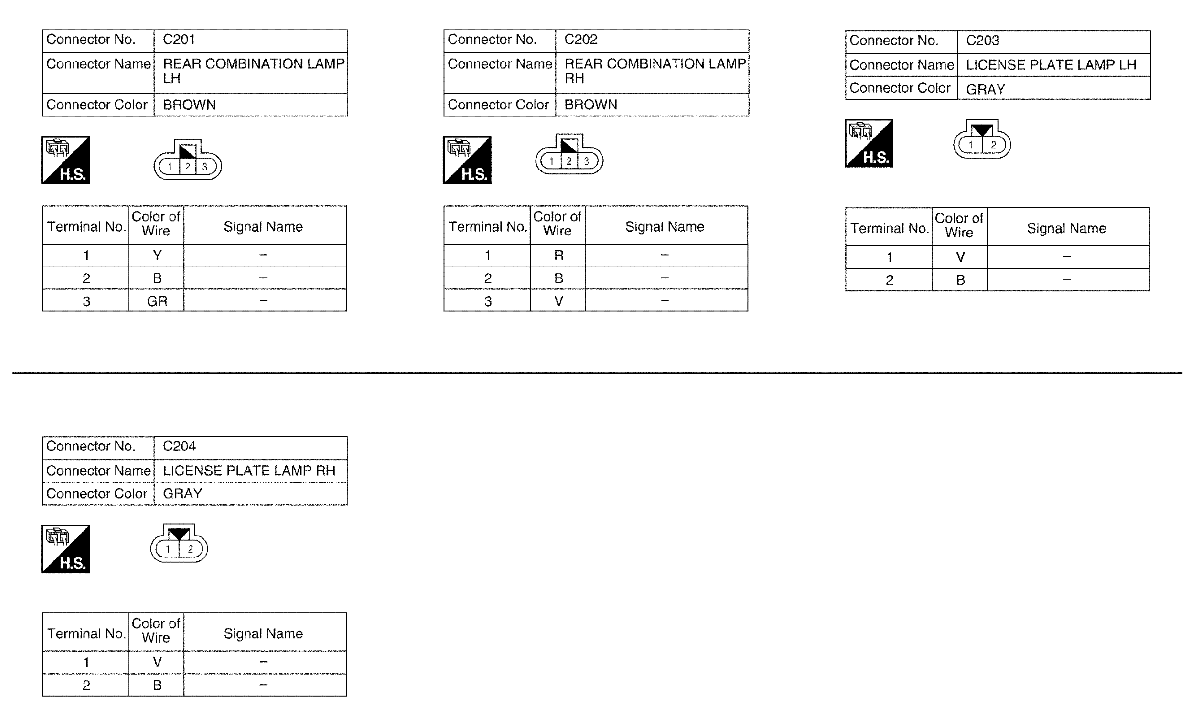

Fig 4: Parking, License Plate And Tail Lamps System - Wiring Diagram (4 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

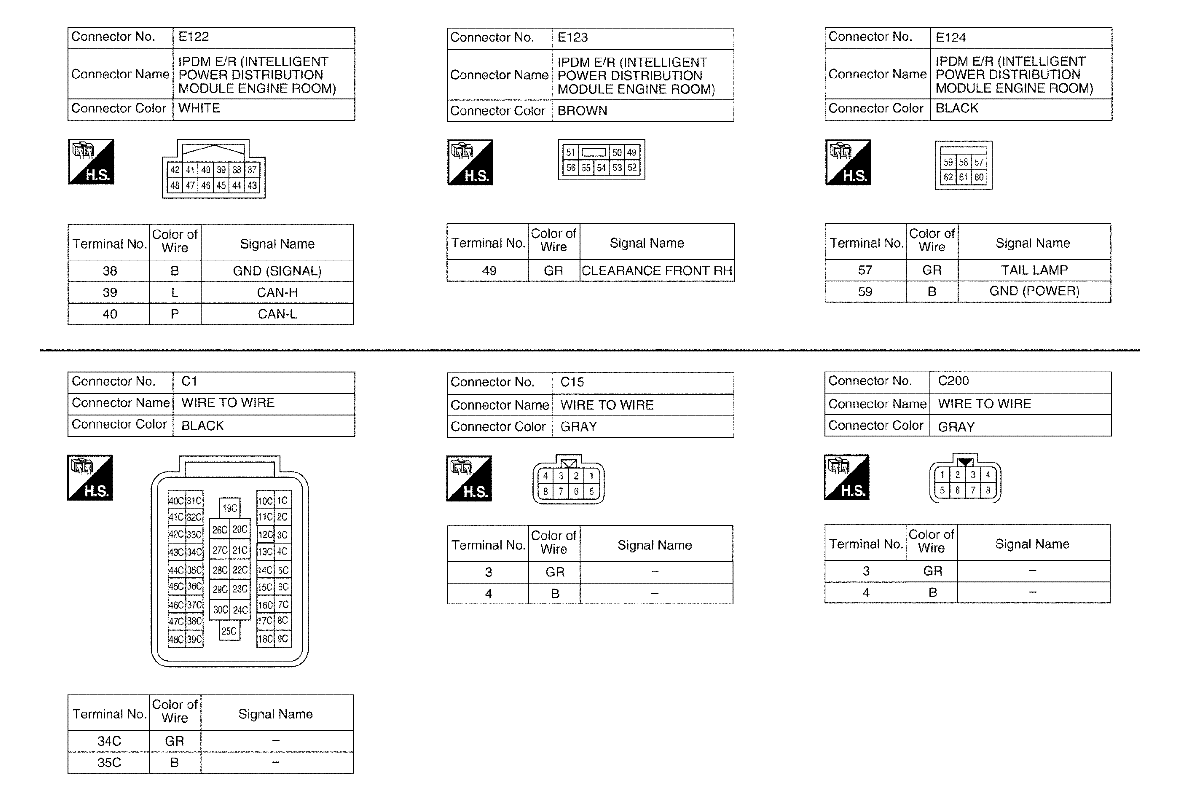

Fig 5: Parking, License Plate And Tail Lamps System - Wiring Diagram (5 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

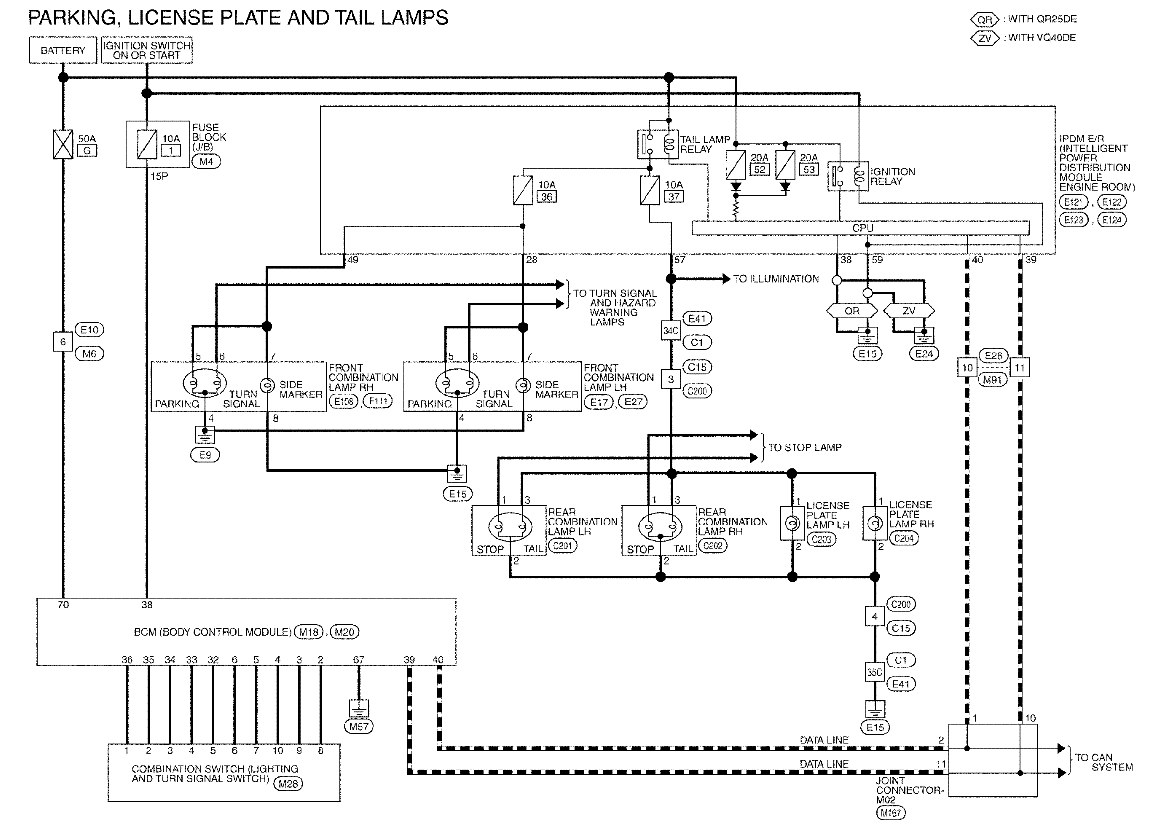

Fig 6: Parking, License Plate And Tail Lamps System - Wiring Diagram (6 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.
