Door Mirror: Wiring Diagram [without Heated Mirrors]
Door Mirror: Wiring Diagram [without Heated Mirrors]

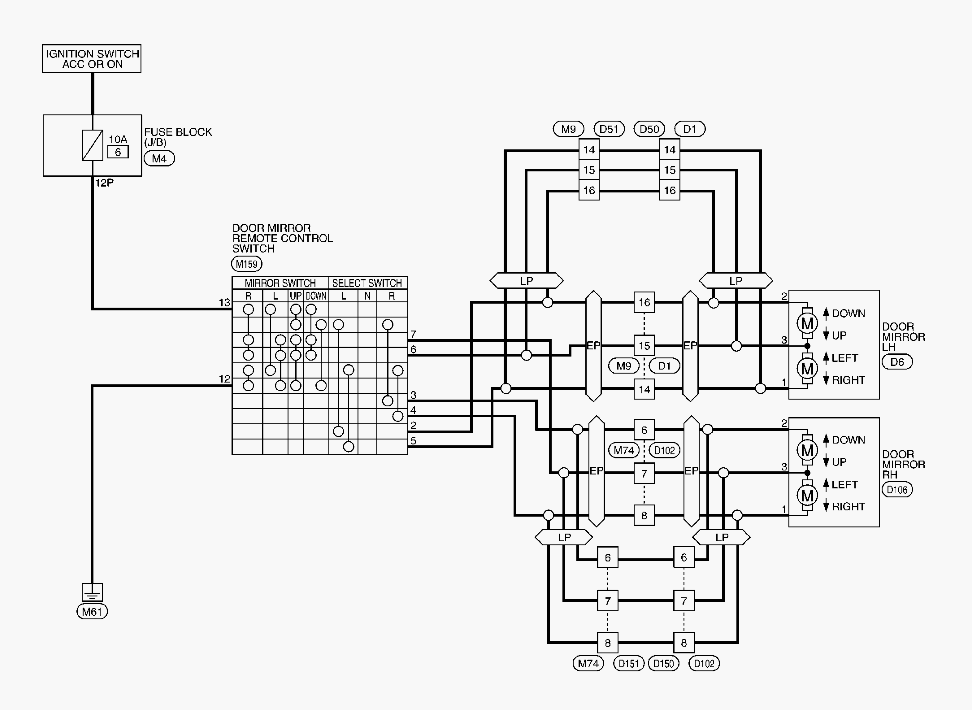

Fig 1: Door Mirror - Wiring Diagram [Without Heated Mirrors] (1 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.

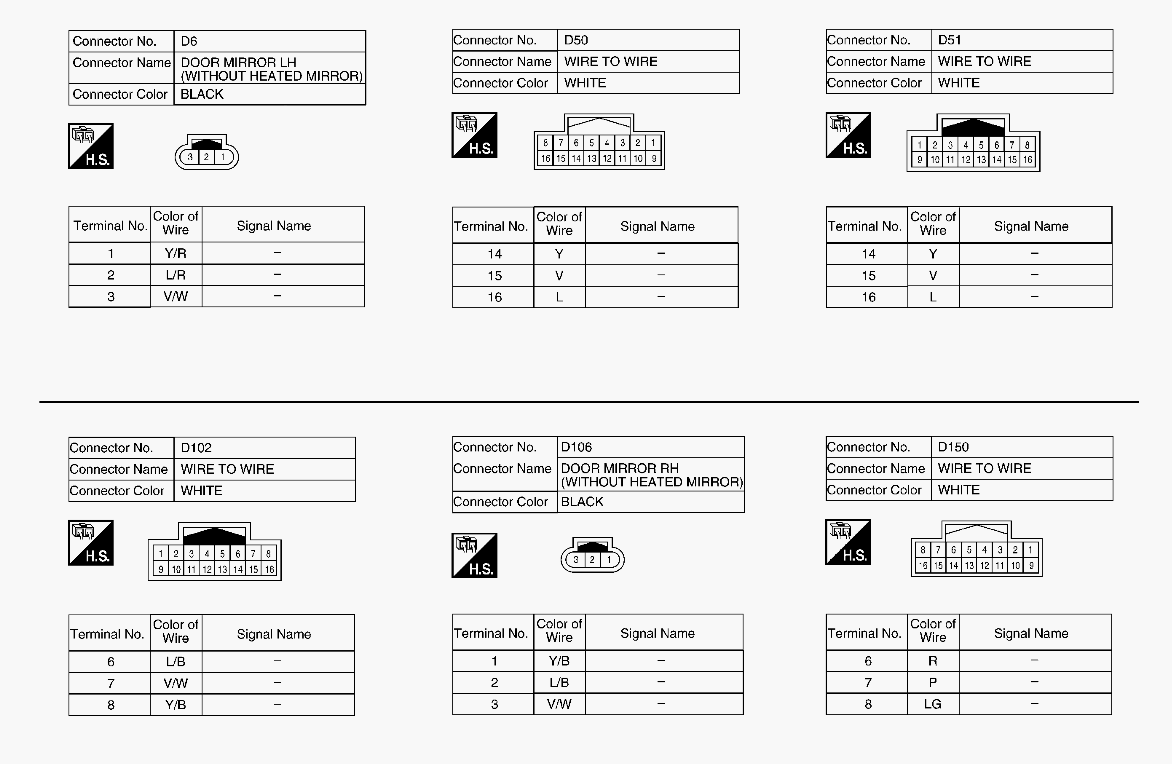

Fig 2: Door Mirror - Wiring Diagram [Without Heated Mirrors] (2 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.

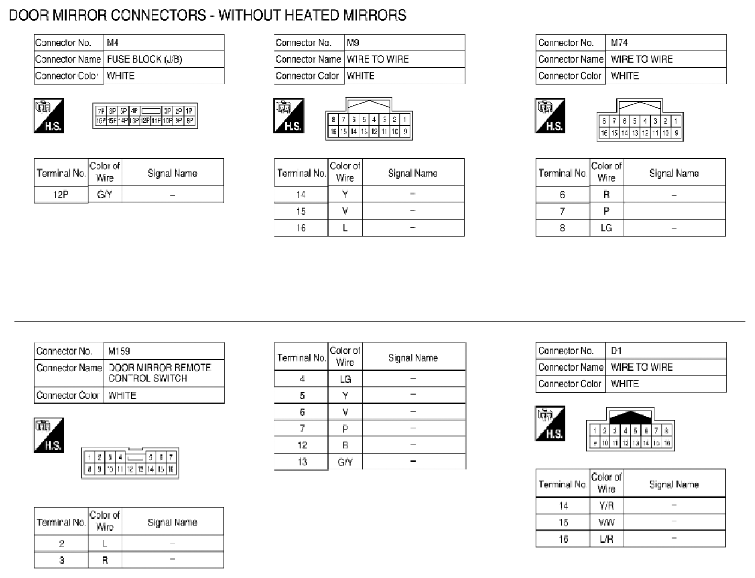

Fig 3: Door Mirror - Wiring Diagram [Without Heated Mirrors] (3 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.
Fig 4: Door Mirror - Wiring Diagram [Without Heated Mirrors] (4 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
