2012
>>
Equator RMZ-4
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Motors, Switches, Relays
>>
Wiring Systems
>>
System Circuit Diagram
>>
Door Mirror: Wiring Diagram [with Heated Mirrors]
Door Mirror: Wiring Diagram [with Heated Mirrors]

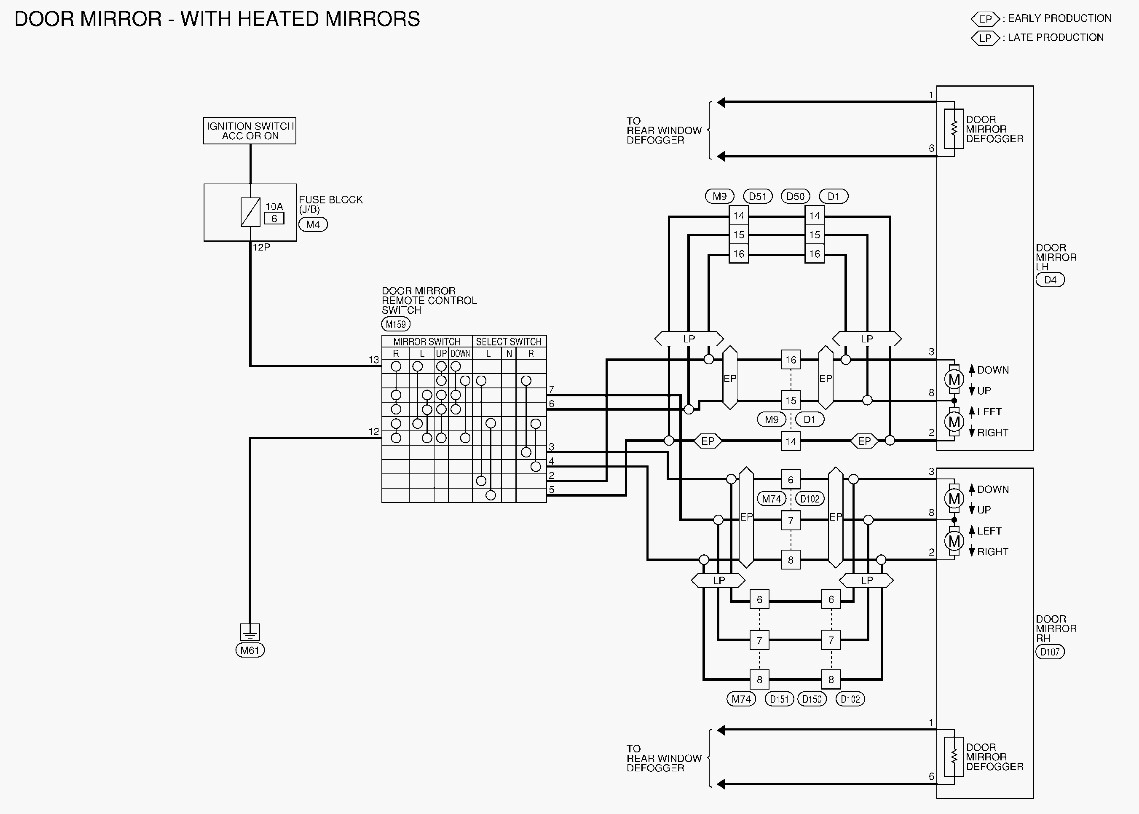

Fig 1: Door Mirror - Wiring Diagram [With Heated Mirrors] (1 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.

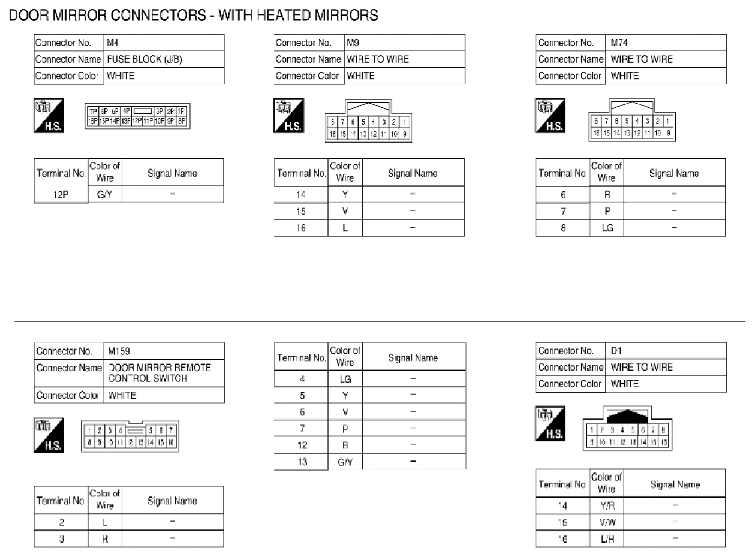

Fig 2: Door Mirror - Wiring Diagram [With Heated Mirrors] (2 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.

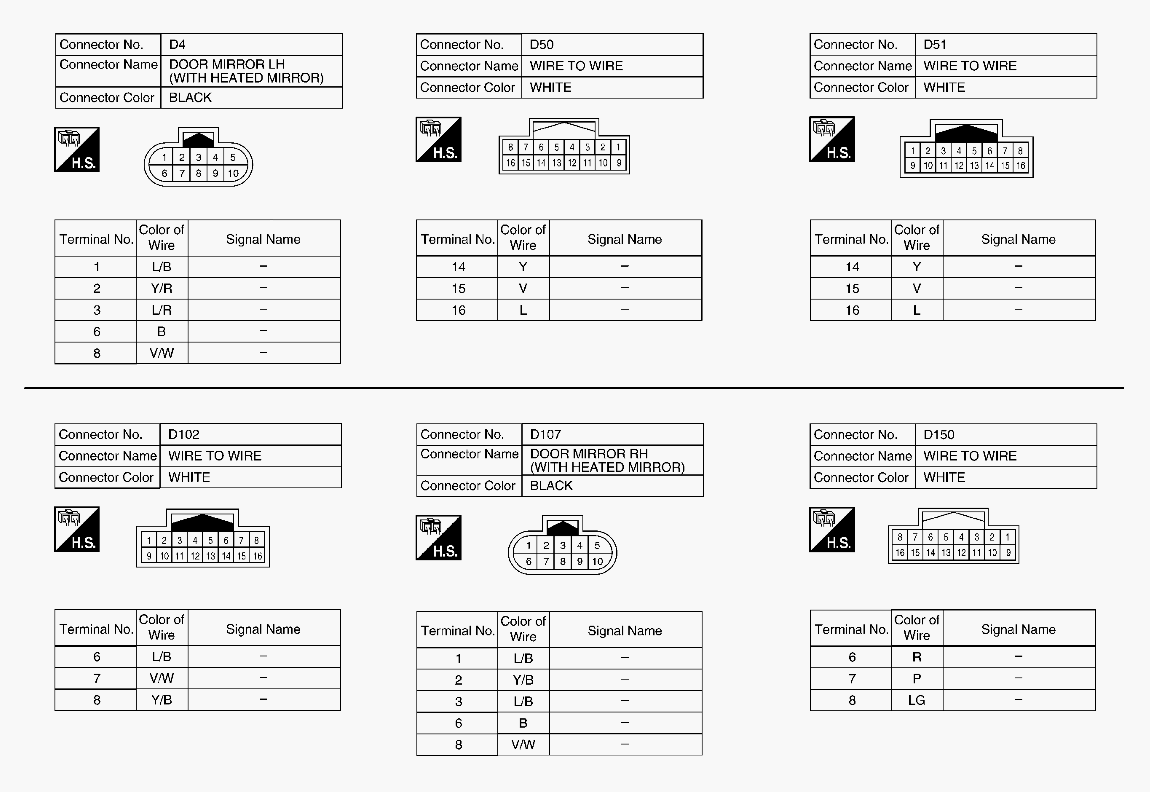

Fig 3: Door Mirror - Wiring Diagram [With Heated Mirrors] (3 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.
Fig 4: Door Mirror - Wiring Diagram [With Heated Mirrors] (4 Of 4)
Courtesy of SUZUKI OF AMERICA CORP.
