Wheel Bearing Inspection

Move wheel hub in the axial direction by hand. Make sure there is no looseness of wheel bearing.

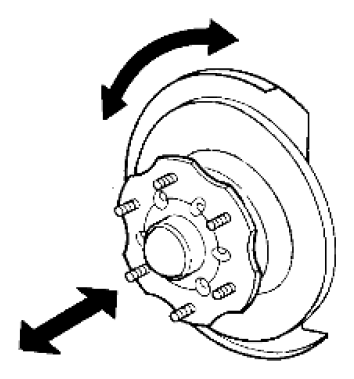

Fig 1: Moving Wheel Hub In Axial Direction
Courtesy of SUZUKI OF AMERICA CORP.

Axial end play limit : Refer to [ Service Data and Specifications ].
Rotate wheel hub and make sure there is no unusual noise or other irregular conditions. If there are any irregular conditions, replace wheel hub and bearing assembly.
