- Remove the caliper body from the torque member. Refer to
[REAR BRAKE CALIPER AND DISC ROTOR: REMOVAL AND INSTALLATION ].
- Remove the sliding sleeves and boots from the torque member.

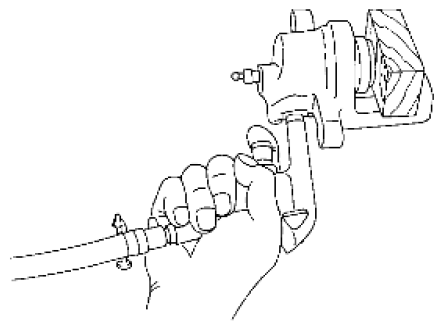

- Place a wooden block in the cylinder body and blow air into the union bolt hole to remove the piston and piston boot as shown.
Courtesy of SUZUKI OF AMERICA CORP.
WARNING:
Do not get your fingers caught between the piston and wooden block.
- Remove the piston boot from the piston.
CAUTION:
Do not reuse piston boot.

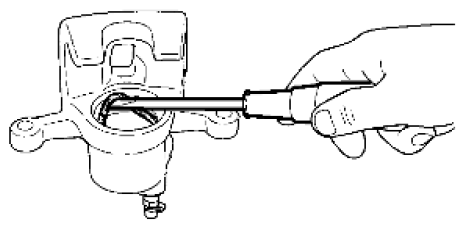

- Remove piston seal from cylinder body, using a suitable tool.
Courtesy of SUZUKI OF AMERICA CORP.
CAUTION:
Be careful not to damage cylinder body inner wall.
- Remove the bleed valve and cap.
