Rear Brake Piping and Brake Hose: Removal and Installation: Installation

Install brake hose by aligning with the protrusion on caliper assembly, then install new copper washers and union bolt. Tighten union bolt to specified torque. Refer to [BRAKE TUBE AND HOSE: HYDRAULIC CIRCUIT ].

Fig 1: Identifying Union Bolt And Copper Washer Location
Courtesy of SUZUKI OF AMERICA CORP.

CAUTION: Do not reuse copper washers.
Insert brake hose end through bracket, then secure it to bracket with lock plate.

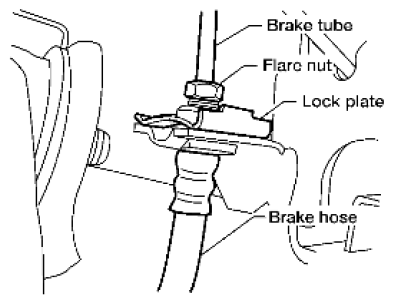

Fig 2: Identifying Brake Tube, Brake Hose, Lock Nut And Flare Nut
Courtesy of SUZUKI OF AMERICA CORP.
Install brake tube to brake hose, then tighten flare nut to the specified torque using a suitable tool.
Refill brake fluid and bleed air. Refer to [BRAKE FLUID: BLEEDING BRAKE SYSTEM ].
