Bench Seat RH (Crew Cab): Removal

  1. Remove the seat hinge finishers.
  2. Release the seatback latch and tilt the seatback down. Remove the nuts.

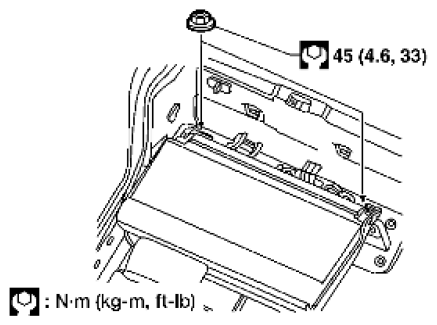

    Fig 1: Locating Nuts With Torque Specifications
    G06446538Courtesy of SUZUKI OF AMERICA CORP.
  3. Raise the seatback.
  4. Remove the seat belt buckle from the cushion.

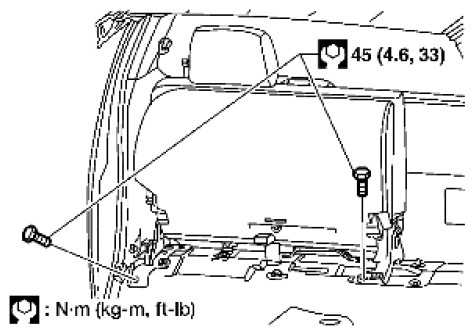

    Fig 2: Locating Seat Bolts With Torque Specifications
    G06446539Courtesy of SUZUKI OF AMERICA CORP.
  5. Remove the seat bolts.
  6. Remove the seat assembly.
