Bench Seat LH (Crew Cab): Removal

  1. Remove the seat hinge finishers.
  2. Release the seatback latch and tilt the seatback down. Remove the nuts.

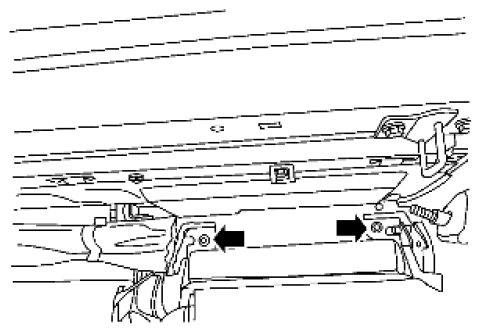

    Fig 1: Locating Nuts
    G06446536Courtesy of SUZUKI OF AMERICA CORP.
  3. Raise the seatback.
  4. Tilt the seat cushion up.

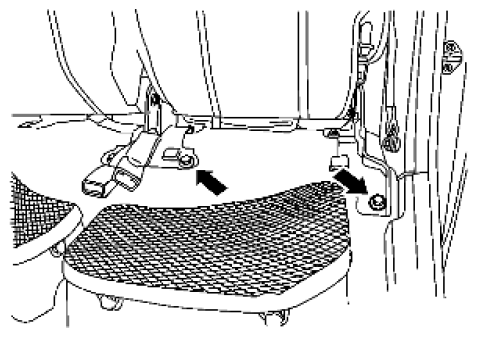

    Fig 2: Locating Seat Bolts
    G06446537Courtesy of SUZUKI OF AMERICA CORP.
  5. Remove the seat bolts.
  6. Remove the seat.
